X3D Model Documentation: BackgroundKelpForestMain.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content='BackgroundKelpForestMain.x3d'/>
  6            <meta name='description' content='Added a Background node to the KelpForest world.'/>
  7            <meta name='creator' content='Don Brutzman Revised: Leonard Daly for X3D Book'/>
  8            <meta name='created' content='1 June 1998'/>
  9            <meta name='modified' content='27 October 2023'/>
 10            <meta name='reference' content='http://faculty.nps.edu/brutzman/kelp'/>
 11            <meta name='reference' content='http://faculty.nps.edu/brutzman/kelp/KelpForestDesignPaper.pdf'/>
 12            <meta name='subject' content='Kelp Forest 3D models'/>
 13            <meta name='accessRights' content='All content has permissions for free use. Please provide credit to the Naval Postgraduate School (NPS) Modeling Virtual Environments and Simulation (MOVES) Institute.'/>
 14            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpForestMain.x3d'/>
 15            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter11LightingEnvironmentalEffects/BackgroundKelpForestMain.x3d'/>
 16            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 17            <meta name='license' content='../license.html'/>
 18       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: CENTER_WAVE, ConsoleOutputViewPositionOrientation, JEFFSCLOCK, K10_DEEP, K10_FLOOR, K10_LOCALE, K11_DEEP, K11_FLOOR, K11_LOCALE, K11_MIDWATER, K2_FLOOR, K2_LOCALE, K2_MIDWATER, K4_FLOOR, K4_LOCALE, K4_MIDWATER, K7_FLOOR, K7_LOCALE, K7_MIDWATER, KelpExamplesNoBase, LEFT_DEEP_WAVE, LEFT_SHALLOW_WAVE, MasterClock, Nancy, NancyInterpolator, NancyTransform, R2_DEEP, R2_LOCALE, R2_MIDWATER, R3_LOCALE, R3_MIDWATER, R5_LOCALE, R5_SHALLOW, RIGHT_DEEP_WAVE, RIGHT_SHALLOW_WAVE, Root, Viewpoints, WAVE_CLOCK

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7

Index for ExternProtoDeclare definitions: ViewPositionOrientation, WaypointInterpolator
-->
 19       <Scene>
 20            <Background groundAngle='1.309 1.5707' groundColor='0.1 0.1 0 0.4 0.25 0.2 0.6 0.6 0.6' skyAngle='1.309 1.5707' skyColor='0 0.5 1 0 0 1 0 0 1'   backUrl=' "urn:web3d:media:textures/panoramas/horizon_3_back.jpg" "../../Basic/UniversalMediaPanoramas/horizon_3_back.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_back.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_back.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_back.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_back.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_back.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_back.jpg " '   bottomUrl=' "urn:web3d:media:textures/panoramas/horizon_3_bottom.jpg" "horizon_3_bottom.jpg " "../../../Basic/UniversalMediaPanoramas/horizon_3_bottom.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_bottom.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_bottom.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_bottom.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_bottom.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_bottom.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_bottom.jpg " '   frontUrl=' "urn:web3d:media:textures/panoramas/horizon_3_front.jpg" "../../Basic/UniversalMediaPanoramas/horizon_3_front.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_front.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_front.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_front.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_front.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_front.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_front.jpg " '   leftUrl=' "urn:web3d:media:textures/panoramas/horizon_3_left.jpg" "../../Basic/UniversalMediaPanoramas/horizon_3_left.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_left.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_left.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_left.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_left.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_left.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_left.jpg " '   rightUrl=' "urn:web3d:media:textures/panoramas/horizon_3_right.jpg" "../../Basic/UniversalMediaPanoramas/horizon_3_right.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_right.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_right.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_right.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_right.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_right.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_right.jpg " '   topUrl=' "urn:web3d:media:textures/panoramas/horizon_3_top.jpg" "../../Basic/UniversalMediaPanoramas/horizon_3_top.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/horizon_3_top.jpg " "https://www.web3d.org/x3d/content/examples/UniversalMediaPanoramas/horizon_3_top.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/horizon_3_top.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/horizon_3_top.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/horizon_3_top.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/horizon_3_top.jpg " '/>
 21            <WorldInfo info=' "kelpForestMain3.4.wrl" "Model of the Monterey Bay Aquarium Kelp Forest" "DTG of last updated: 111500Jun98" "Updated: kelpTank2.9.wrl; " "Created by Naval Postgraduate School students under the supervision of Don Brutzman" "Feel free to copy anything you wish - just give credit where it is due" "http://faculty.nps.edu/brutzman/kelp"' title='NPS Virtual Kelp Forest Exhibit'/>
 22            <NavigationInfo speed='3.0'/>
 23            <ExternProtoDeclare name='ViewPositionOrientation' appinfo='ViewPositionOrientation provides provides console output of local position and orientation as user navigates'   url=' "../../Savage/Tools/Authoring/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "https://savage.nps.edu/Savage/Tools/Authoring/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "../../Savage/Tools/Authoring/ViewPositionOrientationPrototype.wrl#ViewPositionOrientation" "https://savage.nps.edu/Savage/Tools/Authoring/ViewPositionOrientationPrototype.wrl#ViewPositionOrientation" '>
 24                 <field name='enabled' type='SFBool' accessType='inputOutput'
                appinfo='Whether or not ViewPositionOrientation sends output to console'/>
 25                 <field name='traceEnabled' type='SFBool' accessType='initializeOnly'
                appinfo='Output internal trace messages for debugging this node, intended for developer use only'/>
 26                 <field name='set_traceEnabled' type='SFBool' accessType='inputOnly'
                appinfo='Ability to turn output tracing on/off at runtime'/>
 27                 <field name='position_changed' type='SFVec3f' accessType='outputOnly'
                appinfo='Output local position'/>
 28                 <field name='orientation_changed' type='SFRotation' accessType='outputOnly'
                appinfo='Output local orientation'/>
 29                 <field name='outputViewpointString' type='MFString' accessType='outputOnly'
                appinfo='MFString value of new Viewpoint, suitable for use in string field of a Text node'/>
 30            </ExternProtoDeclare>
 31            <ProtoInstance name='ViewPositionOrientation' DEF='ConsoleOutputViewPositionOrientation'>
 32                 <fieldValue name='enabled' value='false'/>
 33            </ProtoInstance>
 34            <ExternProtoDeclare name='WaypointInterpolator' appinfo='Reads waypoints and legSpeeds/legDurations/defaultSpeed to provide a customizable position/orientation interpolator.'   url=' "../../Savage/Tools/Animation/WaypointInterpolatorPrototype.x3d#WaypointInterpolator" "https://savage.nps.edu/Savage/Tools/Animation/WaypointInterpolatorPrototype.x3d#WaypointInterpolator" "../../Savage/Tools/Animation/WaypointInterpolatorPrototype.wrl#WaypointInterpolator" "https://savage.nps.edu/Savage/Tools/Animation/WaypointInterpolatorPrototype.wrl#WaypointInterpolator" '>
 35                 <!-- Priority of use: legSpeeds (m/sec), legDurations (seconds), defaultSpeed (m/sec) -->
 36                 <!-- interpolation fields -->
 37                 <!-- display-related fields -->
 38                 <field name='description' type='SFString' accessType='initializeOnly'
                appinfo='Short description of what is animated by this WaypointInterpolator.'/>
 39                 <field name='waypoints' type='MFVec3f' accessType='initializeOnly'
                appinfo='Waypoints being traversed with interpolation of intermediate positions and orientations.'/>
 40                 <field name='add_waypoint' type='SFVec3f' accessType='inputOnly'
                appinfo='Add another single waypoint to array of waypoints recalculate interpolator values.'/>
 41                 <field name='set_waypoints' type='MFVec3f' accessType='inputOnly'
                appinfo='Replace all waypoints recalculate interpolator values.'/>
 42                 <field name='pitchUpDownForVerticalWaypoints' type='SFBool' accessType='initializeOnly'
                appinfo='Whether to pitch child geometry (such as a vehicle) up or down to match vertical slope'/>
 43                 <field name='legSpeeds' type='MFFloat' accessType='initializeOnly'
                appinfo='Units m/sec. If used, array lengths for legSpeeds and legDurations must be one less than number of waypoints.'/>
 44                 <field name='legDurations' type='MFTime' accessType='initializeOnly'
                appinfo='Units in seconds. If used, array lengths for legSpeeds and legDurations must be one less than number of waypoints.'/>
 45                 <field name='defaultSpeed' type='SFFloat' accessType='initializeOnly'
                appinfo='Units m/sec.'/>
 46                 <field name='turningRate' type='SFFloat' accessType='initializeOnly'
                appinfo='turningRate (degrees/second) also determines standoff distance prior to waypoint where turn commences. If 0 turns are instantaneous.'/>
 47                 <field name='totalDuration' type='SFTime' accessType='outputOnly'
                appinfo='Output calculation summing all leg durations, useful for setting TimeSensor cycleInterval. Units in seconds.'/>
 48                 <field name='set_fraction' type='SFFloat' accessType='inputOnly'
                appinfo='exposed PositionInterpolator and OrientationInterpolator setting'/>
 49                 <field name='position_changed' type='SFVec3f' accessType='outputOnly'
                appinfo='exposed PositionInterpolator setting'/>
 50                 <field name='orientation_changed' type='SFRotation' accessType='outputOnly'
                appinfo='exposed OrientationInterpolator setting'/>
 51                 <field name='lineColor' type='SFColor' accessType='inputOutput'
                appinfo='default color for non-active line segments'/>
 52                 <field name='highlightSegmentColor' type='SFColor' accessType='inputOutput'
                appinfo='active segment highlight color'/>
 53                 <field name='transparency' type='SFFloat' accessType='inputOutput'
                appinfo='1.0 is completely transparent, 0.0 is completely opaque.'/>
 54                 <field name='labelDisplayMode' type='SFString' accessType='initializeOnly'
                appinfo='allowed values: none; waypoints (produce labels at each waypoint); or interpolation (produce single moving label at interpolator time course speed location)'/>
 55                 <field name='heightLabel' type='SFString' accessType='initializeOnly'
                appinfo='allowed values: altitude depth (negate Y value) none'/>
 56                 <field name='labelOffset' type='SFVec3f' accessType='initializeOnly'
                appinfo='heightLabel relative location'/>
 57                 <field name='labelFontSize' type='SFFloat' accessType='initializeOnly'
                appinfo='heightLabel text size'/>
 58                 <field name='labelColor' type='SFColor' accessType='initializeOnly'
                appinfo='heightLabel text color'/>
 59                 <field name='traceEnabled' type='SFBool' accessType='initializeOnly'
                appinfo='enable console output to trace script computations and prototype progress'/>
 60                 <field name='outputInitializationComputations' type='SFBool' accessType='initializeOnly'
                appinfo='Output the number of waypoints totalDistance and totalDuration to console upon initialization'/>
 61                 <field name='verticalDropLineColor' type='SFColor' accessType='inputOutput'
                appinfo='default color for vertical drop-line segments'/>
 62                 <field name='verticalDropLineTransparency' type='SFFloat' accessType='inputOutput'
                appinfo='1.0 is completely transparent, 0.0 is completely opaque.'/>
 63            </ExternProtoDeclare>
 64            <Group DEF='Viewpoints'>
 65                 <Viewpoint description='Kelp Forest Monterey Bay Aquarium' position='0.0 -5.0 45.0'/>

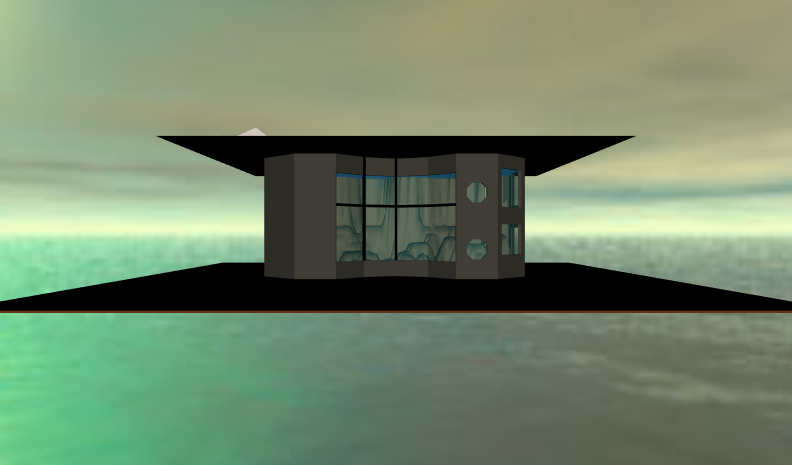

 66                 <Viewpoint description='Side Windows' fieldOfView='0.5' orientation='0.0 1.0 0.0 0.9' position='25.0 -4.0 15.0'/>

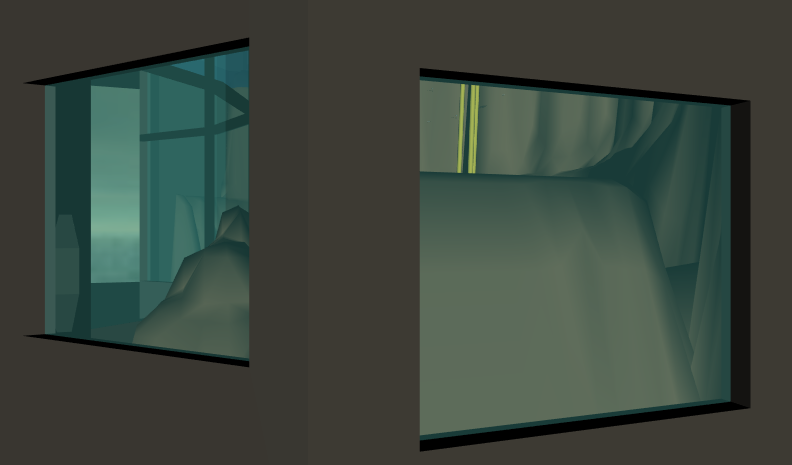

 67                 <Viewpoint description='Star Fish' orientation='0.0 1.0 0.0 1.25' position='14.0 -5.75 1.0'/>
 68                 <Viewpoint description='Inside Tank' orientation='0.0 1.0 0.0 3.14' position='0.0 -5.0 -7.0'/>
 69                 <Viewpoint description='Top floor' fieldOfView='1.04719' orientation='-0.3 1.0 0.3 1.57079' position='12.5 5.0 -2.0'/>
 70                 <Viewpoint description="Bird's Eye View" orientation='1.0 0.0 0.0 -1.57' position='0.0 19.0 -3.5'/>

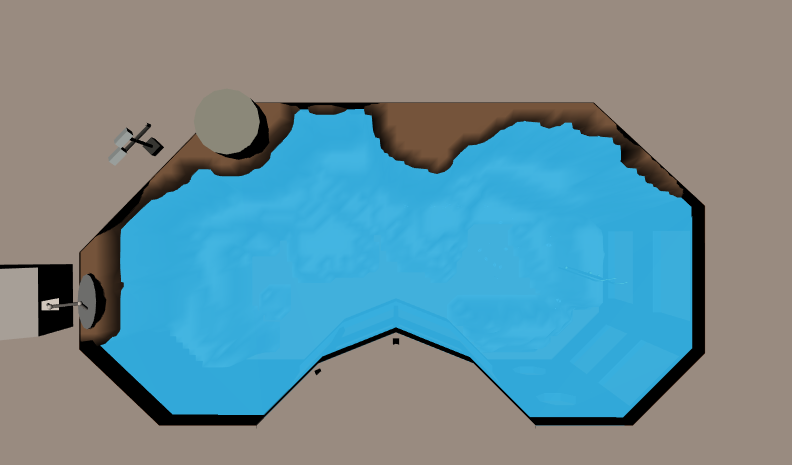

 71                 <Viewpoint description='Pump House' fieldOfView='0.6' orientation='0.0 1.0 0.0 1.3' position='-5.0 1.0 0.0'/>
 72            </Group>
 73            <Group DEF='Root'>
 74                 <Inline   url=' "../KelpForestExhibit/IntroductionMessage.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/IntroductionMessage.x3d" "../KelpForestExhibit/IntroductionMessage.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/IntroductionMessage.wrl" '/>
 75                 <Collision enabled='false'>
 76                      <Transform>
 77                           <Inline   url=' "../KelpForestExhibit/SharkLeftyLocale.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLeftyLocale.x3d" "../KelpForestExhibit/SharkLeftyLocale.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLeftyLocale.wrl" '/>
 78                      </Transform>
 79                      <Transform>
 80                           <Inline   url=' "../KelpForestExhibit/SharkLucyLocale.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLucyLocale.x3d" "../KelpForestExhibit/SharkLucyLocale.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLucyLocale.wrl" '/>
 81                      </Transform>
 82                      <Transform>
 83                           <Inline   url=' "../KelpForestExhibit/KelpTank.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpTank.x3d" "../KelpForestExhibit/KelpTank.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpTank.wrl" '/>
 84                      </Transform>
 85                      <Transform scale='0.54 0.75 0.52' translation='0.3 -2.88 7.3'>
 86                           <Inline   url=' "../KelpForestExhibit/RockFloor.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/RockFloor.x3d" "../KelpForestExhibit/RockFloor.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/RockFloor.wrl" '/>
 87                      </Transform>
 88                      <Transform DEF='K2_LOCALE' translation='-4.0 0.0 1.0'>
 89
                         <!-- ROUTE information for K2_MIDWATER node:  [from RIGHT_DEEP_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='K2_MIDWATER' scale='0.2 0.2 0.2' translation='-1.0 -4.0 -4.0'>
 90                                <Inline   url=' "../KelpForestExhibit/SardineSchool.x3d" "SardineSchool/SardineSchool.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SardineSchool.x3d" "../KelpForestExhibit/SardineSchool.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SardineSchool.wrl" '/>
 91                           </Transform>
 92                           <Transform DEF='K2_FLOOR' rotation='0.0 1.0 0.0 0.44' scale='0.5 0.9 0.5' translation='-1.9 -8.5 -1.5'>
 93
                              <!-- Inline KelpExamplesNoBase is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 -->
                               <Inline DEF='KelpExamplesNoBase'   url=' "../KelpForestExhibit/KelpExamplesNoBase.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpExamplesNoBase.x3d" "../KelpForestExhibit/KelpExamplesNoBase.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpExamplesNoBase.wrl" '/>
 94                           </Transform>
 95                      </Transform>
 96                      <Transform DEF='K4_LOCALE' translation='-2.5 0.0 -2.5'>
 97
                         <!-- ROUTE information for K4_MIDWATER node:  [from CENTER_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='K4_MIDWATER' translation='-10.0 -2.0 -2.0'>
 98                                <Inline   url=' "../KelpForestExhibit/HalfMoonGroup.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/HalfMoonGroup.x3d" "../KelpForestExhibit/HalfMoonGroup.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/HalfMoonGroup.wrl" '/>
 99                           </Transform>
100                           <Transform DEF='K4_FLOOR' rotation='0.0 1.0 0.0 -0.3' scale='0.5 0.8 0.5' translation='-1.5 -7.5 0.5'>
101                                <Inline USE='KelpExamplesNoBase'/>
102                           </Transform>
103                      </Transform>
104                      <Transform DEF='K7_LOCALE' translation='2.0 0.0 -2.5'>
105
                         <!-- ROUTE information for K7_MIDWATER node:  [from CENTER_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='K7_MIDWATER' scale='0.25 0.25 0.25' translation='2.0 -4.0 0.0'>
106                                <Inline   url=' "../KelpForestExhibit/RubberLipGroup.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/RubberLipGroup.x3d" "../KelpForestExhibit/RubberLipGroup.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/RubberLipGroup.wrl" '/>
107                           </Transform>
108                           <Transform DEF='K7_FLOOR' scale='0.5 0.85 0.5' translation='0.0 -7.75 0.0'>
109                                <Inline USE='KelpExamplesNoBase'/>
110                           </Transform>
111                      </Transform>
112                      <Transform DEF='K10_LOCALE' translation='7.0 0.0 2.0'>
113
                         <!-- ROUTE information for K10_DEEP node:  [from LEFT_DEEP_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='K10_DEEP' translation='0.0 -5.0 0.0'>
114                                <Inline   url=' "../KelpForestExhibit/StripedSurfPerch.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/StripedSurfPerch.x3d" "../KelpForestExhibit/StripedSurfPerch.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/StripedSurfPerch.wrl" '/>
115                           </Transform>
116                           <Transform DEF='K10_FLOOR' rotation='0.0 1.0 0.0 0.16' scale='0.5 0.75 0.5' translation='-1.0 -7.0 -1.0'>
117                                <Inline USE='KelpExamplesNoBase'/>
118                           </Transform>
119                      </Transform>
120                      <Transform DEF='K11_LOCALE' translation='8.0 0.0 -2.0'>
121                           <Transform DEF='K11_MIDWATER' rotation='0.0 1.0 0.0 0.3' translation='2.19 -7.0 0.15'>
122                                <Inline   url=' "../KelpForestExhibit/SeaStarSimple.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SeaStarSimple.x3d" "../KelpForestExhibit/SeaStarSimple.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SeaStarSimple.wrl" '/>
123                           </Transform>
124
                         <!-- ROUTE information for K11_DEEP node:  [from LEFT_DEEP_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='K11_DEEP' rotation='0.0 1.0 0.0 0.9' translation='1.0 -5.0 0.0'>
125                                <Inline   url=' "../KelpForestExhibit/BlackSurfPerch.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/BlackSurfPerch.x3d" "../KelpForestExhibit/BlackSurfPerch.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/BlackSurfPerch.wrl" '/>
126                           </Transform>
127                           <Transform DEF='K11_FLOOR' rotation='0.0 1.0 0.0 0.3' scale='0.5 0.75 0.5' translation='-0.3 -7.0 0.0'>
128                                <Inline USE='KelpExamplesNoBase'/>
129                           </Transform>
130                           <Transform translation='1.3 -5.0 3.0'>
131                                <Inline   url=' "../KelpForestExhibit/SeaStarGroup.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SeaStarGroup.x3d" "../KelpForestExhibit/SeaStarGroup.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SeaStarGroup.wrl" '/>
132                           </Transform>
133                      </Transform>
134                      <Transform DEF='R2_LOCALE' translation='-1.0 0.0 -1.0'>
135
                         <!-- ROUTE information for R2_MIDWATER node:  [from RIGHT_SHALLOW_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='R2_MIDWATER' translation='-1.0 -6.0 -2.0'>
136                                <Inline   url=' "../KelpForestExhibit/BlueRockFish.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/BlueRockFish.x3d" "../KelpForestExhibit/BlueRockFish.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/BlueRockFish.wrl" '/>
137                           </Transform>
138
                         <!-- ROUTE information for R2_DEEP node:  [from RIGHT_DEEP_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='R2_DEEP' translation='1.0 -6.5 -1.0'>
139                                <Inline   url=' "../KelpForestExhibit/KelpSurfPerch.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpSurfPerch.x3d" "../KelpForestExhibit/KelpSurfPerch.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpSurfPerch.wrl" '/>
140                           </Transform>
141                      </Transform>
142                      <Transform DEF='R3_LOCALE' translation='3.0 0.0 -4.0'>
143
                         <!-- ROUTE information for R3_MIDWATER node:  [from CENTER_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='R3_MIDWATER' translation='0.0 -6.0 0.0'>
144                                <Inline   url=' "../KelpForestExhibit/Garibaldi.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/Garibaldi.x3d" "../KelpForestExhibit/Garibaldi.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/Garibaldi.wrl" '/>
145                           </Transform>
146                      </Transform>
147                      <Transform DEF='R5_LOCALE' translation='8.0 0.0 -2.0'>
148
                         <!-- ROUTE information for R5_SHALLOW node:  [from RIGHT_SHALLOW_WAVE.value_changed to set_translation ] -->
                          <Transform DEF='R5_SHALLOW' translation='-2.0 -2.0 0.0'>
149                                <Inline   url=' "../KelpForestExhibit/KelpBass.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpBass.x3d" "../KelpForestExhibit/KelpBass.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/KelpBass.wrl" '/>
150                           </Transform>
151                      </Transform>
152
                    <!-- ROUTE information for WAVE_CLOCK node:  [from fraction_changed to CENTER_WAVE.set_fraction ] -->
                     <TimeSensor DEF='WAVE_CLOCK' cycleInterval='5.5' enabled='false' loop='true'/>
153                      <PositionInterpolator DEF='LEFT_SHALLOW_WAVE' key='0.0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1.0' keyValue='0.0 0.0 0.0 0.056 -0.085 0.0 0.08 -0.12 0.0 0.056 -0.085 0.0 0.0 0.0 0.0 -0.056 0.085 0.0 -0.08 0.12 0.0 -0.056 0.085 0.0 0.0 0.0 0.0'/>
154
                    <!-- ROUTE information for LEFT_DEEP_WAVE node:  [from value_changed to K10_DEEP.set_translation ] [from value_changed to K11_DEEP.set_translation ] -->
                     <PositionInterpolator DEF='LEFT_DEEP_WAVE' key='0.0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1.0' keyValue='0.0 0.0 0.0 0.035 -0.035 0.0 0.05 -0.05 0.0 0.035 -0.035 0.0 0.0 0.0 0.0 -0.035 0.035 0.0 -0.05 0.05 0.0 -0.035 0.035 0.0 0.0 0.0 0.0'/>
155
                    <!-- ROUTE information for CENTER_WAVE node:  [from WAVE_CLOCK.fraction_changed to set_fraction ] [from value_changed to K7_MIDWATER.set_translation ] [from value_changed to K4_MIDWATER.set_translation ] [from value_changed to R3_MIDWATER.set_translation ] -->
                     <PositionInterpolator DEF='CENTER_WAVE' key='0.0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1.0' keyValue='0.0 0.0 0.0 0.106 0.0 0.0 0.15 0.0 0.0 0.106 0.0 0.0 0.0 0.0 0.0 -0.106 0.0 0.0 -0.15 0.0 0.0 -0.106 0.0 0.0 0.0 0.0 0.0'/>
156
                    <!-- ROUTE information for RIGHT_SHALLOW_WAVE node:  [from value_changed to R2_MIDWATER.set_translation ] [from value_changed to R5_SHALLOW.set_translation ] -->
                     <PositionInterpolator DEF='RIGHT_SHALLOW_WAVE' key='0.0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1.0' keyValue='0.0 0.0 0.0 0.056 0.085 0.0 0.08 0.12 0.0 0.056 0.085 0.0 0.0 0.0 0.0 -0.056 -0.085 0.0 -0.08 -0.12 0.0 -0.056 -0.085 0.0 0.0 0.0 0.0'/>
157
                    <!-- ROUTE information for RIGHT_DEEP_WAVE node:  [from value_changed to K2_MIDWATER.set_translation ] [from value_changed to R2_DEEP.set_translation ] -->
                     <PositionInterpolator DEF='RIGHT_DEEP_WAVE' key='0.0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1.0' keyValue='0.0 0.0 0.0 0.035 0.035 0.0 0.05 0.05 0.0 0.035 0.035 0.0 0.0 0.0 0.0 -0.035 -0.035 0.0 -0.05 -0.05 0.0 -0.035 -0.035 0.0 0.0 0.0 0.0'/>
158                 </Collision>
159            </Group>
160            < ROUTE  fromNode='WAVE_CLOCK' fromField='fraction_changed' toNode='CENTER_WAVE' toField='set_fraction'/>
161            < ROUTE  fromNode='CENTER_WAVE' fromField='value_changed' toNode='K7_MIDWATER' toField='set_translation'/>
162            < ROUTE  fromNode='RIGHT_DEEP_WAVE' fromField='value_changed' toNode='K2_MIDWATER' toField='set_translation'/>
163            < ROUTE  fromNode='CENTER_WAVE' fromField='value_changed' toNode='K4_MIDWATER' toField='set_translation'/>
164            < ROUTE  fromNode='LEFT_DEEP_WAVE' fromField='value_changed' toNode='K10_DEEP' toField='set_translation'/>
165            < ROUTE  fromNode='LEFT_DEEP_WAVE' fromField='value_changed' toNode='K11_DEEP' toField='set_translation'/>
166            < ROUTE  fromNode='RIGHT_SHALLOW_WAVE' fromField='value_changed' toNode='R2_MIDWATER' toField='set_translation'/>
167            < ROUTE  fromNode='RIGHT_DEEP_WAVE' fromField='value_changed' toNode='R2_DEEP' toField='set_translation'/>
168            < ROUTE  fromNode='CENTER_WAVE' fromField='value_changed' toNode='R3_MIDWATER' toField='set_translation'/>
169            < ROUTE  fromNode='RIGHT_SHALLOW_WAVE' fromField='value_changed' toNode='R5_SHALLOW' toField='set_translation'/>
170            <TimeSensor DEF='MasterClock' loop='true'/>
171            <Group DEF='Nancy'>
172                 <!-- Scale used on Nancy underwater to approximate the defraction magnification of the plexiglass window. -->
173
               <!-- ROUTE information for NancyTransform node:  [from NancyInterpolator.position_changed to set_translation ] [from NancyInterpolator.orientation_changed to set_rotation ] -->
                <Transform DEF='NancyTransform' rotation='-0.45 0.77 -0.45 1.82' scale='1.3 1.3 1.3' translation='3 -6.5 -2'>
174                      <Inline   url=' "../../HumanoidAnimation/Legacy/NancyDiving.x3d" "https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Legacy/NancyDiving.x3d" "../../HumanoidAnimation/Legacy/NancyDiving.wrl" "https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Legacy/NancyDiving.wrl" '/>
175                 </Transform>
176
               <!-- ROUTE information for JEFFSCLOCK node:  [from fraction_changed to NancyInterpolator.set_fraction ] -->
                <TimeSensor DEF='JEFFSCLOCK' cycleInterval='100' loop='true'/>
177
               <!-- ROUTE information for NancyInterpolator node:  [from JEFFSCLOCK.fraction_changed to set_fraction ] [from position_changed to NancyTransform.set_translation ] [from orientation_changed to NancyTransform.set_rotation ] -->
                <ProtoInstance name='WaypointInterpolator' DEF='NancyInterpolator'>
178                      <fieldValue name='description' value='Nancy track'/>
179                      <fieldValue name='waypoints' value='-5.5 -5.7 -.2 -7.7 -2.7 -1.7 6 -3 -3 2 -2 -2 1 -4 -1 -2 -2 -2 -5.5 -5.7 -.2'/>
180                      <fieldValue name='defaultSpeed' value='0.5'/>
181                      <fieldValue name='pitchUpDownForVerticalWaypoints' value='true'/>
182                      <fieldValue name='labelDisplayMode' value='none'/>
183                      <fieldValue name='lineColor' value='0 0 0'/>
184                      <fieldValue name='labelColor' value='0 0.8 0.8'/>
185                      <fieldValue name='labelOffset' value='0 -1.6 0'/>
186                      <fieldValue name='labelFontSize' value='6'/>
187                      <fieldValue name='traceEnabled' value='false'/>
188                      <fieldValue name='transparency' value='1'/>
189                      <fieldValue name='turningRate' value='18'/>
190                      <!-- totalDuration is a computed output -->
191                 </ProtoInstance>
192            </Group>
193            < ROUTE  fromNode='JEFFSCLOCK' fromField='fraction_changed' toNode='NancyInterpolator' toField='set_fraction'/>
194            < ROUTE  fromNode='NancyInterpolator' fromField='position_changed' toNode='NancyTransform' toField='set_translation'/>
195            < ROUTE  fromNode='NancyInterpolator' fromField='orientation_changed' toNode='NancyTransform' toField='set_rotation'/>
196       </Scene>
197  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: CENTER_WAVE, ConsoleOutputViewPositionOrientation, JEFFSCLOCK, K10_DEEP, K10_FLOOR, K10_LOCALE, K11_DEEP, K11_FLOOR, K11_LOCALE, K11_MIDWATER, K2_FLOOR, K2_LOCALE, K2_MIDWATER, K4_FLOOR, K4_LOCALE, K4_MIDWATER, K7_FLOOR, K7_LOCALE, K7_MIDWATER, KelpExamplesNoBase, LEFT_DEEP_WAVE, LEFT_SHALLOW_WAVE, MasterClock, Nancy, NancyInterpolator, NancyTransform, R2_DEEP, R2_LOCALE, R2_MIDWATER, R3_LOCALE, R3_MIDWATER, R5_LOCALE, R5_SHALLOW, RIGHT_DEEP_WAVE, RIGHT_SHALLOW_WAVE, Root, Viewpoints, WAVE_CLOCK

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7

Index for ExternProtoDeclare definitions: ViewPositionOrientation, WaypointInterpolator
-->
X3D Tooltips element index: Background, Collision, ExternProtoDeclare, field, fieldValue, Group, head, Inline, meta, NavigationInfo, PositionInterpolator, ProtoInstance, ROUTE, Scene, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table entries with 13 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

JEFFSCLOCK
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
NancyInterpolator
ProtoInstance
set_fraction
SFFloat 		then


  		NancyInterpolator
ProtoInstance
orientation_changed
SFRotation
→
ROUTE
event to
(2)
NancyTransform
Transform
set_rotation
SFRotation
  then


  		NancyInterpolator
ProtoInstance
position_changed
SFVec3f
→
ROUTE
event to
(2)
NancyTransform
Transform
set_translation
SFVec3f

WAVE_CLOCK
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
CENTER_WAVE
PositionInterpolator
set_fraction
SFFloat 		then


  		CENTER_WAVE
PositionInterpolator
value_changed
SFVec3f
→
ROUTE
event to
(2)
K7_MIDWATER
Transform
set_translation
SFVec3f
  then


  		CENTER_WAVE
PositionInterpolator
value_changed
SFVec3f
→
ROUTE
event to
(2)
K4_MIDWATER
Transform
set_translation
SFVec3f
  then


  		CENTER_WAVE
PositionInterpolator
value_changed
SFVec3f
→
ROUTE
event to
(2)
R3_MIDWATER
Transform
set_translation
SFVec3f

ConsoleOutputViewPositionOrientation
ProtoInstance
ViewPositionOrientation 		No ROUTE connection found for output events from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter11LightingEnvironmentalEffects/BackgroundKelpForestMainIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter11LightingEnvironmentalEffects/BackgroundKelpForestMain.x3d -->

<!-- Color legend: X3D terminology <X3dNode DEF='idName' field='value'/> matches XML terminology <XmlElement DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
    <ProtoInstance name='ProtoName'> <field name='fieldName'/> </ProtoInstance> -->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
