X3D Model Documentation: MovieTextureAuthoringOptions.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content='MovieTextureAuthoringOptions.x3d'/>
  6            <meta name='description' content='Provide examples of helpful MovieTexture usage'/>
  7            <meta name='creator' content='Don Brutzman and MV3204 class'/>
  8            <meta name='created' content='21 August 2008'/>
  9            <meta name='modified' content='10 June 2021'/>
 10            <meta name='subject' content='MovieTexture examples'/>
 11            <meta name='Image' content='MovieTextureFigure.png'/>

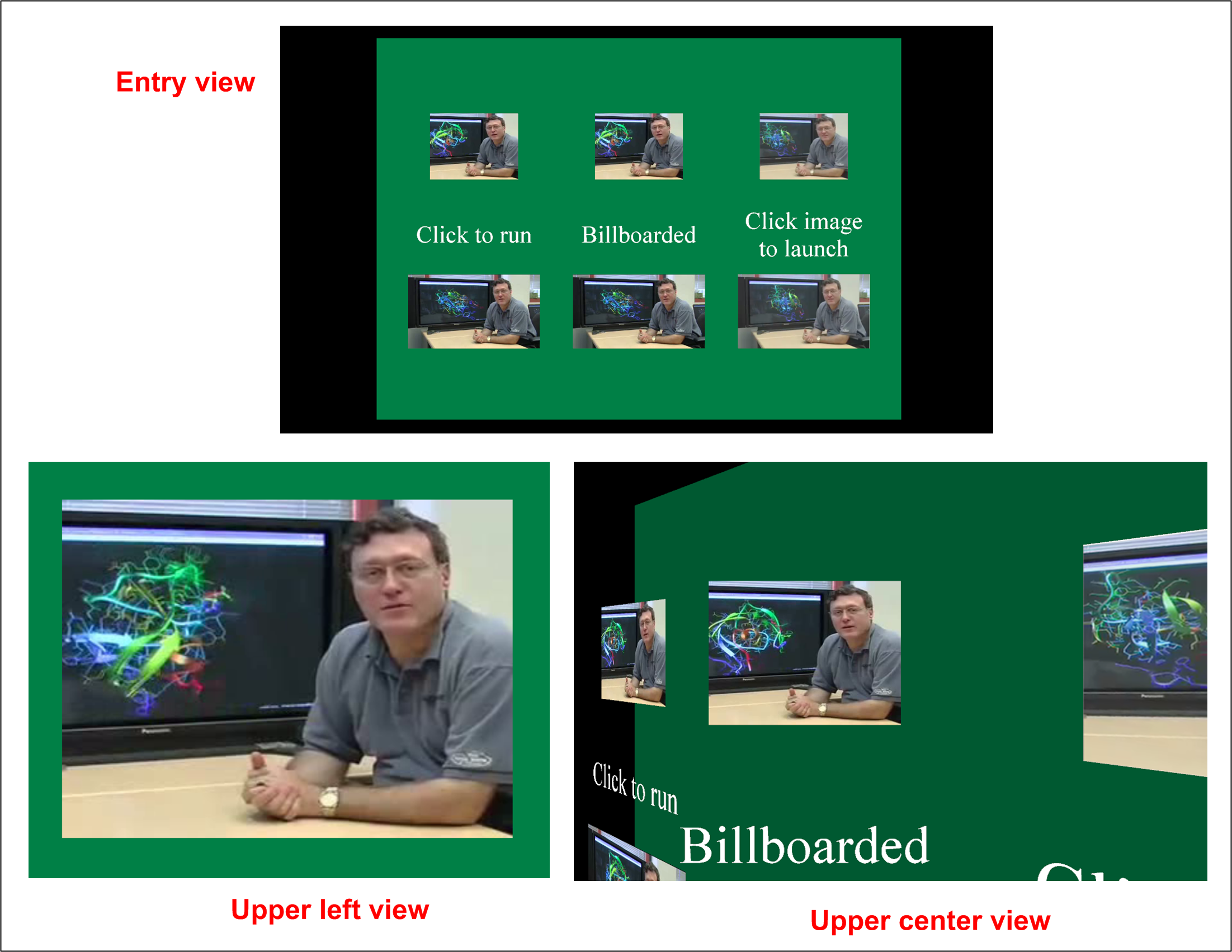

 12            <meta name='Image' content='MovieTextureAuthoringOptions.png'/>
 13            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/MovieTextureAuthoringOptions.x3d'/>
 14            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 15            <meta name='license' content='../license.html'/>
 16       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: Backdrop, BottomGroupTextureLaunch, BottomGroupTextures, CenterGroupText, FullImageMapping, MovieShapeHighDefinition, MovieShapeStandardDefinition, MovieTouchHighDefinition, MovieTouchStandardDefinition, Quadrilateral320x240, Quadrilateral480x270, TextAppearance, TopGroupTextureLaunch, TopGroupTextures, X3dQuipMovieHighDefinition, X3dQuipMovieStandardDefinition

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7
-->
 17       <Scene>
 18            <WorldInfo title='MovieTextureAuthoringOptions.x3d'/>
 19            <Viewpoint description='MovieTexture authoring options' position='0 0 18'/>
 20            <Group DEF='TopGroupTextures'>
 21                 <!-- First row: standard definition -->
 22                 <Transform translation='-6 3 0'>
 23                      <!-- Flat-surface movie, with fixed position and orientation -->
 24                      <Viewpoint description='Movie #1, standard definition' position='0 0 5'/>
 25
                    <!-- Shape MovieShapeStandardDefinition is a DEF node that has 1 USE node: USE_1 -->
                     <Shape DEF='MovieShapeStandardDefinition'>
 26
                         <!-- IndexedFaceSet Quadrilateral320x240 is a DEF node that has 1 USE node: USE_1 -->
                          <IndexedFaceSet DEF='Quadrilateral320x240' solid='false' coordIndex='0 1 2 3'>
 27                                <Coordinate point='-1.6 -1.2 0 1.6 -1.2 0 1.6 1.2 0 -1.6 1.2 0'/>
 28
                              <!-- TextureCoordinate FullImageMapping is a DEF node that has 1 USE node: USE_1 -->
                               <TextureCoordinate DEF='FullImageMapping' point='0 0 1 0 1 1 0 1'/>
 29                           </IndexedFaceSet>
 30                           <Appearance>
 31
                              <!-- ROUTE information for X3dQuipMovieStandardDefinition node:  [from MovieTouchStandardDefinition.touchTime to startTime ] -->
                               <MovieTexture DEF='X3dQuipMovieStandardDefinition' description='click to start movie, standard definition' repeatS='false' repeatT='false'   url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" '/>
 32                           </Appearance>
 33                      </Shape>
 34                 </Transform>
 35                 <Transform translation='0 3 0'>
 36                      <!-- movie under a Billboard to always face user -->
 37                      <Viewpoint description='Billboarded movie #2 offset view location, standard definition' orientation='0 1 0 0.8' position='4 0 4'/>
 38                      <Billboard axisOfRotation='0 0 0'>
 39                           <Shape USE='MovieShapeStandardDefinition'/>

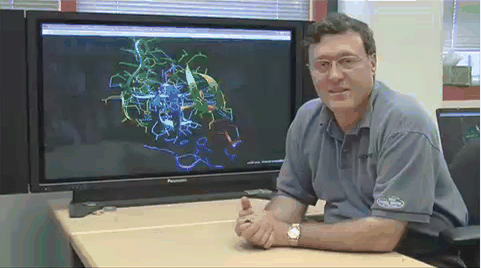

 40                      </Billboard>
 41                 </Transform>
 42
               <!-- ROUTE information for MovieTouchStandardDefinition node:  [from touchTime to X3dQuipMovieStandardDefinition.startTime ] -->
                <TouchSensor DEF='MovieTouchStandardDefinition' description='click to start movie, standard definition'/>
 43                 < ROUTE  fromNode='MovieTouchStandardDefinition' fromField='touchTime' toNode='X3dQuipMovieStandardDefinition' toField='startTime'/>
 44            </Group>
 45            <Transform DEF='TopGroupTextureLaunch' translation='6 3 0'>
 46                 <!-- Launch movie into external browser -->
 47                 <Viewpoint description='Image #3 launches movie externally, standard definition' position='0 0 5'/>
 48                 <Anchor description='Click to launch in external browser, standard definition' parameter='"target=_blank"'   url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" '>
 49                      <Shape>
 50                           <IndexedFaceSet USE='Quadrilateral320x240'/>
 51                           <Appearance>

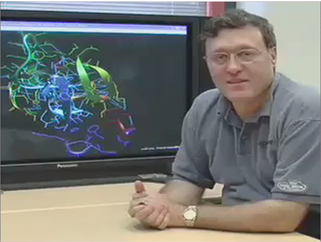

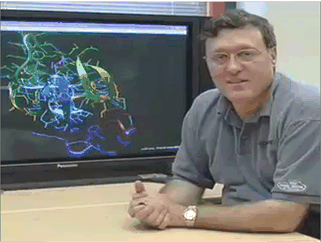

 52                                <ImageTexture repeatS='false' repeatT='false'   url=' "X3dQuipBrutzmanStandardDefinitionInitialFrame.png " "X3dQuipBrutzmanStandardDefinitionInitialFrame.gif " "X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.png " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.gif " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg " '/>
 53                           </Appearance>
 54                      </Shape>
 55                 </Anchor>
 56            </Transform>
 57            <Transform DEF='CenterGroupText' translation='0 0.25 0'>
 58                 <!-- Text descriptions for user -->
 59                 <Transform translation='-6 0 0'>
 60                      <Shape>
 61                           <Text string='"Select to run" "MovieTexture"'>
 62                                <FontStyle justify='"MIDDLE" "MIDDLE"'/>
 63                           </Text>
 64
                         <!-- Appearance TextAppearance is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                          <Appearance DEF='TextAppearance'>
 65                                <Material diffuseColor='0 0.7 0.7'/>
 66                           </Appearance>
 67                      </Shape>
 68                 </Transform>
 69                 <Billboard axisOfRotation='0 0 0'>
 70                      <Shape>
 71                           <Text string='"Billboarded" "MovieTexture"'>
 72                                <FontStyle justify='"MIDDLE" "MIDDLE"'/>
 73                           </Text>
 74                           <Appearance USE='TextAppearance'/>
 75                      </Shape>
 76                 </Billboard>
 77                 <Transform translation='6 0 0'>
 78                      <Shape>
 79                           <Text string='"Select image" "to launch"'>
 80                                <FontStyle justify='"MIDDLE" "MIDDLE"'/>
 81                           </Text>
 82                           <Appearance USE='TextAppearance'/>
 83                      </Shape>
 84                 </Transform>
 85            </Transform>
 86            <Group DEF='BottomGroupTextures'>
 87                 <!-- Third row: high definition -->
 88                 <Transform translation='-6 -3 0'>
 89                      <Viewpoint description='Movie #4, high definition' position='0 0 5'/>
 90
                    <!-- Shape MovieShapeHighDefinition is a DEF node that has 1 USE node: USE_1 -->
                     <Shape DEF='MovieShapeHighDefinition'>
 91
                         <!-- IndexedFaceSet Quadrilateral480x270 is a DEF node that has 1 USE node: USE_1 -->
                          <IndexedFaceSet DEF='Quadrilateral480x270' solid='false' coordIndex='0 1 2 3'>
 92                                <Coordinate point='-2.4 -1.35 0 2.4 -1.35 0 2.4 1.35 0 -2.4 1.35 0'/>
 93                                <TextureCoordinate USE='FullImageMapping'/>
 94                           </IndexedFaceSet>
 95                           <Appearance>
 96

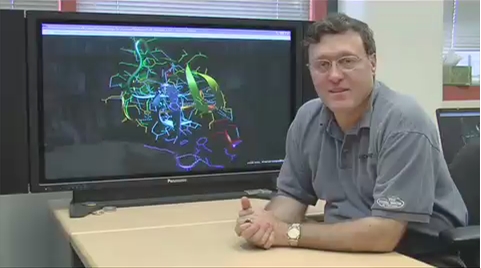

                              <!-- ROUTE information for X3dQuipMovieHighDefinition node:  [from MovieTouchHighDefinition.touchTime to startTime ] -->
                               <MovieTexture DEF='X3dQuipMovieHighDefinition' description='click to start movie, high definition' repeatS='false' repeatT='false'   url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" '/>
 97                           </Appearance>
 98                      </Shape>
 99                 </Transform>
100                 <Transform translation='0 -3 0'>
101                      <!-- movie under a Billboard to always face user -->
102                      <Viewpoint description='Billboarded movie #5 offset view location, high definition' orientation='0 1 0 0.8' position='4 0 4'/>
103                      <Billboard axisOfRotation='0 0 0'>
104                           <Shape USE='MovieShapeHighDefinition'/>
105                      </Billboard>
106                 </Transform>
107
               <!-- ROUTE information for MovieTouchHighDefinition node:  [from touchTime to X3dQuipMovieHighDefinition.startTime ] -->
                <TouchSensor DEF='MovieTouchHighDefinition' description='click to start movie, high definition'/>
108                 < ROUTE  fromNode='MovieTouchHighDefinition' fromField='touchTime' toNode='X3dQuipMovieHighDefinition' toField='startTime'/>
109            </Group>
110            <Transform DEF='BottomGroupTextureLaunch' translation='6 -3 0'>
111                 <!-- Launch movie into external browser -->
112                 <Viewpoint description='Image #6 launches movie externally, high definition' position='0 0 5'/>
113                 <Anchor description='Click to launch in external browser, high definition' parameter='"target=_blank"'   url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" '>
114                      <Shape>
115                           <IndexedFaceSet USE='Quadrilateral480x270'/>
116                           <Appearance>
117                                <ImageTexture repeatS='false' repeatT='false'   url=' "X3dQuipBrutzmanH264InitialFrame.png " "X3dQuipBrutzmanH264InitialFrame.gif " "X3dQuipBrutzmanH264InitialFrame.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.png " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.gif " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.jpg " '/>
118                           </Appearance>
119                      </Shape>
120                 </Anchor>
121            </Transform>
122            <Transform DEF='Backdrop' translation='0 0 -3'>
123                 <Shape>
124                      <Box size='22 16 0.5'/>
125                      <Appearance>
126                           <Material diffuseColor='0 0.501961 0.27451'/>
127                      </Appearance>
128                 </Shape>
129            </Transform>
130       </Scene>
131  </X3D>
<!--
<!--
