X3D Model Documentation: test_red_on_blue.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interactive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='test_red_on_blue.x3d'/>
  6            <meta name='Image' content='test-red-on-blue-front.jpg'/>
  7            <meta name='reference' content='http://www.nist.gov/vrml.html'/>
  8            <meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
  9            <meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
 10            <meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
 11            <meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
 12            <meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
 13            <meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
 14            <meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
 15            <meta name='translated' content='21 January 2001'/>
 16            <meta name='modified' content='28 August 2023'/>

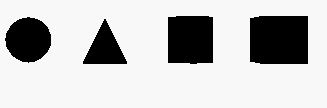

 17            <meta name='description' content='This test addresses the ability of a browser to apply a colored (red) light on an object of a different color (blue). Four simple geometries are defined in the local coordinate system and the emissive and diffuse color are both set to 0 0 1. A DirectionalLight is also defined and a red color is associated with it. This light illuminates the objects making them look black. The dot product of the light and object color produce a black appearing object.'/>
 18            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/DirectionalLight/test_red_on_blue.x3d'/>
 19            <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 20            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 21            <meta name='license' content='../../license.html'/>
 22       </head>
<!--
<!-- -->

<!-- to top Index for DEF node: the-light

Index for Viewpoint node: Viewpoint_1
-->
 23       <Scene>
 24            <WorldInfo title='test_red_on_blue.x3d'/>
 25            <Group>
 26                 <Viewpoint description='Front View' position='0 0 15'/>
 27            </Group>
 28            <Background groundColor='0 0 0' skyColor='1 1 1'/>
 29            <NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
 30            <SpotLight beamWidth='1.570796' cutOffAngle='.785398' on='false'/>
 31            <PointLight on='false'/>
 32            <DirectionalLight DEF='the-light' color='1 0 0'/>
 33            <Transform translation='6.14221 0.0694613 -0.000999451'>
 34                 <Shape>
 35                      <Appearance>
 36                           <Material diffuseColor='0 0 1'/>
 37                      </Appearance>
 38                      <Box/>
 39                 </Shape>
 40            </Transform>
 41            <Transform translation='-4.85443 0.0694381 -0.00149918'>
 42                 <Shape>
 43                      <Appearance>
 44                           <Material diffuseColor='0 0 1'/>
 45                      </Appearance>
 46                      <Sphere/>
 47                 </Shape>
 48            </Transform>
 49            <Transform translation='-1.47341 0.036672 -0.00175095'>
 50                 <Shape>
 51                      <Appearance>
 52                           <Material diffuseColor='0 0 1'/>
 53                      </Appearance>
 54                      <Cone/>
 55                 </Shape>
 56            </Transform>
 57            <Transform translation='2.31094 0.0694206 -0.00187683'>
 58                 <Shape>
 59                      <Appearance>
 60                           <Material diffuseColor='0 0 1'/>
 61                      </Appearance>
 62                      <Cylinder/>
 63                 </Shape>
 64            </Transform>
 65       </Scene>
 66  </X3D>
<!--
<!-- -->

<!-- to top Index for DEF node: the-light

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, Box, Cone, Cylinder, DirectionalLight, Group, head, Material, meta, NavigationInfo, PointLight, Scene, Shape, Sphere, SpotLight, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/DirectionalLight/test_red_on_blueIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/ConformanceNist/Lights/DirectionalLight/test_red_on_blue.x3d -->

<!-- Color legend: X3D terminology <X3dNode DEF='idName' field='value'/> matches XML terminology <XmlElement DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
