X3D Model Documentation: all_complex_movietexture.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='all_complex_movietexture.x3d'/>
  6            <meta name='Image' content='all_complex_movietexture-front.jpg'/>

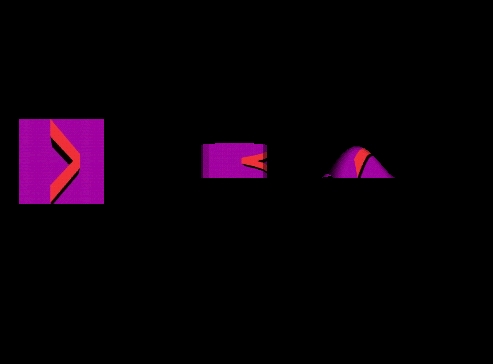

  7            <meta name='Image' content='all_complex_movietexture-rear.jpg'/>

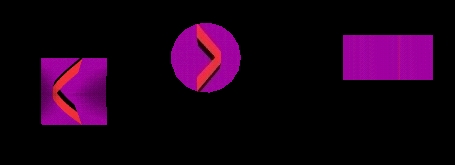

  8            <meta name='Image' content='all_complex_movietexture-top.jpg'/>

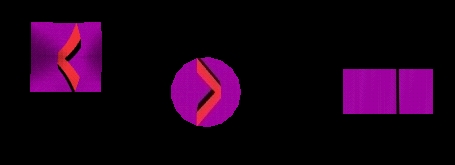

  9            <meta name='Image' content='all_complex_movietexture-bottom.jpg'/>

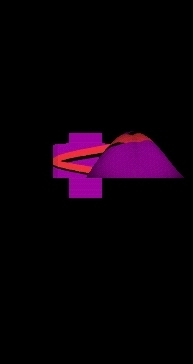

 10            <meta name='Image' content='all_complex_movietexture-left.jpg'/>

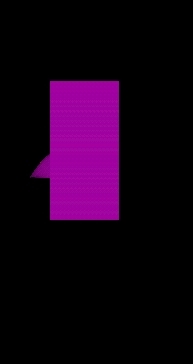

 11            <meta name='Image' content='all_complex_movietexture-right.jpg'/>
 12            <meta name='reference' content='http://www.nist.gov/vrml.html'/>
 13            <meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
 14            <meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
 15            <meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
 16            <meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
 17            <meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
 18            <meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
 19            <meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
 20            <meta name='translated' content='21 January 2001'/>
 21            <meta name='modified' content='28 August 2023'/>
 22            <meta name='description' content='Test scale, transform rotation and center of MovieTexture TextureTransform. Test browser ability to apply a +90 degree rotation, with a center of 1 3, a scale of .33 1, and a translation of 0 4.9 to a MovieTexture mapped to the faces of complex geometry. The result is using default complex geometry mapping rules (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) The geometry faces should map a single, centered V that is 3 times wider than its height, oriented down for its horizontal axis, and right for its vertical axis. Opposite geometry faces should show reversed mapping, and side faces for the IndexedFaceSet should show smeared end pixels of the front and back faces.'/>
 23            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/all_complex_movietexture.x3d'/>
 24            <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 25            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 26            <meta name='license' content='../../license.html'/>
 27       </head>
<!--
<!-- -->

<!-- to top Index for DEF node: MYMOVIE

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
 28       <Scene>
 29            <WorldInfo title='all_complex_movietexture.x3d'/>
 30            <Group>
 31                 <Viewpoint description='Front View' position='0 0 15'/>
 32                 <Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -15'/>
 33                 <Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 15 0'/>
 34                 <Viewpoint description='Bottom View' orientation='1 0 0 1.57' position='0 -15 0'/>
 35                 <Viewpoint description='Right View' orientation='0 1 0 1.57' position='15 0 0'/>
 36                 <Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-15 0 0'/>
 37            </Group>
 38            <NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
 39            <DirectionalLight direction='0 0 1' intensity='0.5'/>
 40            <DirectionalLight intensity='0.5'/>
 41            <Transform translation='-5 0 0'>
 42                 <Shape>
 43                      <Appearance>
 44
                         <!-- MovieTexture MYMOVIE is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                          <MovieTexture DEF='MYMOVIE' loop='true'   url=' "vts.mpg" "https://www.web3d.org/x3d/content/examples/ConformanceNist/vts.mpg" '/>
 45                           <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 46                           <Material/>
 47                      </Appearance>
 48                      <ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
 49                 </Shape>
 50            </Transform>
 51            <Transform>
 52                 <Shape>
 53                      <Appearance>
 54                           <MovieTexture USE='MYMOVIE'/>
 55                           <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 56                           <Material/>
 57                      </Appearance>
 58                      <Extrusion crossSection='1 -2.44921e-016 0.932472 -0.361242 0.739009 -0.673696 0.445738 -0.895164 0.0922675 -0.995734 -0.273664 -0.961825 -0.602635 -0.798017 -0.850218 -0.526432 -0.982973 -0.183749 -0.982973 0.18375 -0.850217 0.526433 -0.602634 0.798018 -0.273663 0.961826 0.0922688 0.995734 0.445739 0.895163 0.739009 0.673695 0.932472 0.361241 1 -2.44921e-016' orientation='0 0 1 0 0 0 1 0' scale='1 1 1 1' solid='false'/>
 59                 </Shape>
 60            </Transform>
 61            <Transform scale='0.615111 0.615111 0.615112' translation='5 0.5 0'>
 62                 <Shape>
 63                      <Appearance>
 64                           <MovieTexture USE='MYMOVIE'/>
 65                           <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 66                           <Material/>
 67                      </Appearance>
 68                      <IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
 69                           <Coordinate point='-2 2 1 -2 -2 1 2 2 1 2 -2 1 2 2 -1 2 -2 -1 -2 2 -1 -2 -2 -1'/>
 70                      </IndexedFaceSet>
 71                 </Shape>
 72            </Transform>
 73       </Scene>
 74  </X3D>
<!--
<!-- -->
