<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
/>
/>
/>
| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
|
| 3 | <X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'> |
| 4 | <head> |
| 5 | <component level='1' name='NURBS'/> |
| 6 | <meta name='title' content='AnimatedNurbsPatchSurfaceHead.x3d'/> |
| 7 | <meta name='description' content='Example of animating controlPoint to simulate facial expressions - read my lips (pretty creepy!)'/> |
| 8 | <meta name='creator' content='Charles Adams, Vince Marchetti'/> |
| 9 | <meta name='translator' content='Exported from Maya 4 by X3D MayaExport Plug-in'/> |
| 10 | <meta name='created' content='26 February 2003'/> |
| 11 | <meta name='modified' content='20 October 2019'/> |
| 12 | <meta name='info' content='Animation only working in H3DViewer, InstantReality, OctagaVS'/> |
| 13 |

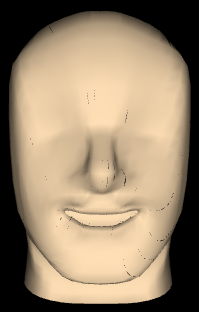

<meta name='Image' content='images/AnimatedNurbsPatchSurfaceHeadH3DViewer.png'/>
|
| 14 |

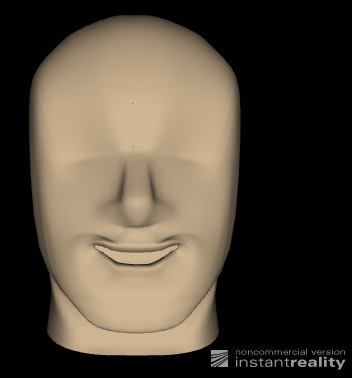

<meta name='Image' content='images/AnimatedNurbsPatchSurfaceHeadInstantReality.png'/>
|
| 15 |

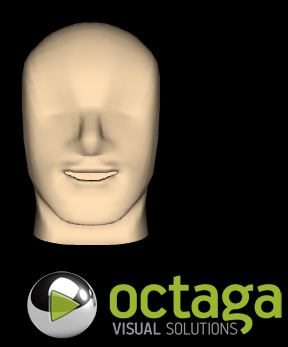

<meta name='Image' content='images/AnimatedNurbsPatchSurfaceHeadOctagaVS.png'/>
|
| 16 | <meta name='reference' content='http://edocs.nps.edu/npspubs/scholarly/theses/2003/Jun/03Jun_Adams.pdf'/> |
| 17 | <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Basic/NURBS/AnimatedNurbsPatchSurfaceHead.x3d'/> |
| 18 | <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/> |
| 19 | <meta name='license' content='../license.html'/> |
| 20 | </head> |
| 21 | <Scene> |
| 22 | <WorldInfo title='AnimatedNurbsPatchSurfaceHead.x3d'/> |
| 23 | <Transform translation='-2.5 0 0'> |
| 24 | <Transform rotation='0.0 1 0.0 3.14'> |
| 25 | <Transform scale='0.249 0.249 0.249'> |
| 26 | <Shape> |
| 27 | <Appearance> |
| 28 | <Material diffuseColor='.996 .871 .706'/> |
| 29 | </Appearance> |
| 30 | <!-- ccw="false" --> |
| 31 | <NurbsPatchSurface DEF='NS' solid='false' uClosed='true' uDimension='24' uKnot='2 2 2 2 3 4 5 6 7 8 9 10 10.5776 11 11.4830 12 13 14 15 16 17 18 19 20 21 21 21 21' uOrder='4' vClosed='true' vDimension='30' vKnot='0 0 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 27 27 27' vOrder='4' containerField='geometry'> |
| 32 |
<!-- ROUTE information for NC node:
[from CI.value_changed to set_point
]
-->
<Coordinate DEF='NC' containerField='controlPoint' point='-11.7578 -6.7464 -6.3137 -12.1236 -6.7185 -6.3208 -12.2527 -6.6067 -6.3488 -12.9135 -6.5388 -6.1805 -13.2555 -6.5671 -6.2433 -13.3467 -6.0869 -6.2392 -13.0345 -6.1151 -6.2725 -12.6849 -6.0054 -6.3250 -12.4115 -6.0347 -6.3110 -11.8663 -6.0277 -6.3143 -11.3996 -6.0279 -6.3142 -11.0448 -6.0284 -6.3139 -10.7044 -6.0278 -6.3142 -10.2390 -6.0278 -6.3142 -9.7061 -6.0346 -6.3109 -9.4321 -6.0053 -6.3249 -9.0820 -6.1149 -6.2724 -8.7692 -6.0867 -6.2390 -8.8599 -6.5668 -6.2433 -9.2032 -6.5386 -6.1805 -9.8642 -6.6066 -6.3488 -10.0582 -6.7742 -6.3067 -11.3921 -6.7743 -6.3067 -11.7578 -6.7464 -6.3137 -11.6030 -7.9766 -6.1488 -11.9363 -7.9616 -6.1558 -12.4259 -7.9017 -6.1838 -13.2492 -8.2633 -6.0153 -14.0886 -7.6470 -6.0782 -15.0765 -5.7190 -6.0746 -13.8819 -4.4841 -6.1083 -13.3069 -4.6315 -6.1608 -11.3438 -4.5916 -6.1468 -11.9470 -4.6009 -6.1501 -11.5278 -4.6005 -6.1500 -11.0407 -4.5997 -6.1497 -10.5734 -4.6006 -6.1499 -10.1880 -4.6007 -6.1499 -10.7773 -4.5916 -6.1468 -8.8119 -4.6316 -6.1606 -8.2360 -4.4843 -6.1081 -7.0343 -5.7192 -6.0740 -8.0234 -7.6462 -6.0783 -8.8659 -8.2624 -6.0155 -9.6905 -7.9012 -6.1839 -10.4261 -7.9914 -6.1419 -11.2697 -7.9915 -6.1419 -11.6030 -7.9766 -6.1488 -11.6080 -7.8431 -7.9041 -11.9028 -7.8274 -7.9111 -12.0410 -7.7644 -7.9391 -13.2615 -8.1429 -7.7706 -13.9667 -7.5727 -7.8337 -14.9137 -5.8044 -7.8305 -13.8868 -4.6161 -7.8642 -13.0560 -4.7729 -7.9165 -12.3076 -4.7307 -7.9025 -11.8700 -4.7405 -7.9057 -11.4079 -4.7401 -7.9056 -11.0408 -4.7393 -7.9053 -10.6886 -4.7402 -7.9056 -10.2308 -4.7404 -7.9055 -9.8031 -4.7308 -7.9023 -9.0533 -4.7731 -7.9162 -8.2211 -4.6166 -7.8636 -7.1868 -5.8050 -7.8296 -8.1341 -7.5721 -7.8336 -8.8419 -8.1421 -7.7707 -10.0646 -7.7641 -7.9391 -10.2724 -7.8585 -7.8971 -11.3133 -7.8587 -7.8971 -11.6080 -7.8431 -7.9041 -11.7411 -6.5034 -8.3343 -12.1120 -6.4742 -8.3414 -12.3235 -6.3574 -8.3696 -12.7601 -6.3194 -8.2009 -13.0094 -6.4316 -8.2655 -13.0988 -6.2393 -8.2545 -12.9193 -6.3550 -8.3128 -12.7061 -6.2490 -8.2718 -12.3951 -6.3225 -8.6066 -11.8592 -6.1624 -8.5282 -11.3932 -6.1688 -8.5314 -11.0376 -6.1818 -8.5377 -10.6966 -6.1675 -8.5307 -10.2322 -6.1662 -8.5300 -9.7073 -6.3225 -8.6064 -9.3982 -6.2490 -8.2716 -9.1840 -6.3550 -8.3126 -9.0047 -6.2393 -8.2542 -9.0939 -6.4315 -8.2652 -9.3445 -6.3194 -8.2007 -9.7806 -6.3573 -8.3694 -10.0983 -6.5325 -8.3272 -11.3703 -6.5325 -8.3273 -11.7411 -6.5034 -8.3343 -11.7252 -6.6688 -8.9651 -12.0870 -6.6401 -8.9914 -12.2801 -6.5253 -9.0965 -12.8529 -6.4751 -8.4661 -13.1680 -6.4987 -8.4925 -13.2565 -6.2361 -8.7108 -12.9884 -6.1741 -8.9398 -12.6839 -6.0900 -9.0936 -12.3981 -6.1574 -9.1862 -11.8566 -5.9987 -9.1646 -11.3904 -6.0051 -9.1654 -11.0356 -6.0180 -9.1671 -10.6952 -6.0039 -9.1651 -10.2305 -6.0025 -9.1649 -9.7004 -6.1575 -9.1859 -9.4150 -6.0902 -9.0933 -9.1107 -6.1743 -8.9394 -8.8433 -6.2362 -8.7104 -8.9331 -6.4987 -8.4922 -9.2492 -6.4751 -8.4659 -9.8185 -6.5253 -9.0963 -10.1094 -6.6974 -8.9387 -11.3634 -6.6975 -8.9388 -11.7252 -6.6688 -8.9651 -11.7052 -6.9152 -8.9148 -12.0527 -6.8878 -8.9765 -12.2119 -6.7783 -9.2234 -13.0192 -6.6980 -8.6275 -13.3102 -6.6375 -8.4724 -13.5219 -6.0859 -8.7726 -13.0882 -5.9402 -9.1005 -12.6560 -5.8397 -9.4460 -12.4046 -5.9114 -9.4397 -11.8553 -5.7518 -9.4412 -11.3888 -5.7582 -9.4411 -11.0349 -5.7711 -9.4409 -10.6954 -5.7570 -9.4410 -10.2301 -5.7557 -9.4409 -9.6926 -5.9116 -9.4393 -9.4409 -5.8400 -9.4456 -9.0100 -5.9404 -9.1000 -8.5770 -6.0861 -8.7720 -8.7904 -6.6374 -8.4720 -9.0809 -6.6979 -8.6272 -9.8854 -6.7783 -9.2232 -10.1270 -6.9425 -8.8530 -11.3577 -6.9425 -8.8530 -11.7052 -6.9152 -8.9148 -11.6502 -7.2713 -8.6786 -11.9655 -7.2442 -8.6874 -12.0888 -7.1353 -8.7225 -13.2240 -7.3040 -8.6894 -13.6243 -6.8649 -8.4265 -13.9721 -5.6859 -8.6914 -13.2974 -5.7401 -8.8112 -12.6597 -5.3683 -9.2812 -12.1895 -5.3573 -9.3395 -11.8717 -5.4363 -9.4519 -11.4149 -5.4332 -9.4473 -11.0342 -5.4268 -9.4381 -10.6690 -5.4338 -9.4481 -10.2199 -5.4346 -9.4490 -9.9102 -5.3575 -9.3392 -9.4397 -5.3687 -9.2808 -8.8028 -5.7405 -8.8107 -8.1270 -5.6864 -8.6907 -8.4751 -6.8648 -8.4261 -8.8739 -7.3038 -8.6892 -10.0118 -7.1352 -8.7224 -10.1972 -7.2984 -8.6698 -11.3349 -7.2985 -8.6699 -11.6502 -7.2713 -8.6786 -11.6067 -7.5584 -8.5898 -11.8991 -7.5984 -8.5615 -12.0140 -7.7580 -8.4484 -13.3542 -7.6863 -8.5690 -13.8224 -7.2778 -8.3965 -14.4606 -5.6560 -8.4649 -13.5315 -5.3637 -8.5927 -12.8937 -4.8990 -8.8226 -12.1626 -5.2998 -9.2282 -11.8748 -5.0172 -9.3425 -11.4191 -5.0285 -9.3353 -11.0350 -5.0515 -9.3249 -10.6664 -5.0264 -9.3362 -10.2193 -5.0240 -9.3396 -9.9381 -5.3001 -9.2279 -9.2097 -4.8994 -8.8221 -8.5705 -5.3641 -8.5922 -7.6382 -5.6567 -8.4640 -8.2756 -7.2775 -8.3961 -8.7436 -7.6858 -8.5688 -10.0879 -7.7577 -8.4484 -10.2595 -7.5184 -8.6181 -11.3143 -7.5185 -8.6181 -11.6067 -7.5584 -8.5898 -11.5903 -8.0358 -8.4426 -11.8895 -8.0546 -8.4297 -12.1261 -8.1296 -8.3779 -13.3419 -8.1023 -8.4911 -14.0591 -7.6287 -8.3228 -15.0008 -5.5996 -8.0218 -13.8058 -4.8398 -8.4008 -13.2667 -4.6826 -8.7134 -11.5262 -4.7356 -9.2539 -11.9241 -4.4749 -8.9891 -11.4953 -4.6412 -9.3098 -11.0317 -4.7243 -9.4544 -10.5883 -4.6333 -9.2957 -10.1900 -4.4812 -8.9951 -10.5763 -4.7357 -9.2538 -8.8372 -4.6831 -8.7128 -8.2982 -4.8404 -8.4001 -7.0987 -5.6005 -8.0207 -8.0377 -7.6282 -8.3225 -8.7558 -8.1016 -8.4910 -9.9758 -8.1291 -8.3779 -10.3306 -8.0169 -8.4556 -11.2910 -8.0170 -8.4556 -11.5903 -8.0358 -8.4426 -11.5701 -8.2823 -8.4684 -11.8689 -8.3492 -8.4729 -12.1829 -8.6162 -8.4909 -13.4186 -8.4335 -8.3360 -14.2852 -7.8442 -8.1850 -15.3916 -5.5471 -7.6866 -14.0573 -4.3973 -8.2159 -13.0274 -4.2775 -8.6720 -12.5707 -4.2994 -9.1457 -11.3955 -4.6512 -9.4821 -11.1227 -4.6214 -9.5618 -11.0474 -4.5866 -9.5715 -10.9750 -4.6247 -9.5608 -10.6782 -4.6430 -9.4741 -9.5328 -4.2998 -9.1453 -9.0785 -4.2780 -8.6715 -8.0485 -4.3981 -8.2152 -6.7082 -5.5481 -7.6855 -7.8111 -7.8435 -8.1847 -8.6796 -8.4325 -8.3360 -9.9175 -8.6156 -8.4910 -10.3897 -8.2153 -8.4639 -11.2712 -8.2155 -8.4639 -11.5701 -8.2823 -8.4684 -11.6073 -8.9557 -8.4527 -11.9269 -8.9640 -8.4467 -12.2560 -8.9969 -8.4229 -13.5339 -8.6234 -8.1919 -14.5228 -8.2634 -7.9854 -15.7945 -5.1717 -7.2880 -14.2361 -3.8287 -8.1139 -13.0801 -3.9757 -8.5670 -12.5771 -3.4023 -9.3208 -11.8440 -3.8678 -9.9532 -11.3695 -4.3205 -9.8694 -11.0362 -4.4701 -9.7949 -10.7164 -4.3062 -9.8765 -10.2389 -3.8571 -9.9381 -9.5279 -3.4028 -9.3204 -9.0272 -3.9762 -8.5665 -7.8714 -3.8295 -8.1131 -6.3069 -5.1730 -7.2866 -7.5728 -8.2623 -7.9852 -8.5648 -8.6222 -8.1920 -9.8446 -8.9961 -8.4230 -10.3388 -8.9472 -8.4587 -11.2878 -8.9475 -8.4586 -11.6073 -8.9557 -8.4527 -11.6501 -9.4792 -8.3946 -11.9952 -9.4894 -8.4116 -12.3582 -9.5298 -8.4798 -13.8094 -8.7578 -8.0328 -14.9991 -8.5041 -7.4886 -16.0184 -4.1680 -7.0990 -14.5141 -3.5446 -7.9691 -13.3300 -3.2493 -8.4873 -11.9088 -3.3299 -9.4786 -11.8938 -3.3122 -10.1406 -11.4481 -3.3135 -10.4998 -11.0318 -3.3153 -10.5993 -10.6332 -3.3136 -10.4900 -10.2065 -3.3130 -10.1247 -10.1961 -3.3302 -9.4784 -8.7793 -3.2499 -8.4867 -7.5943 -3.5456 -7.9683 -6.0865 -4.1697 -7.0976 -7.0966 -8.5027 -7.4885 -8.2890 -8.7564 -8.0329 -9.7414 -9.5287 -8.4801 -10.2877 -9.4686 -8.3777 -11.3050 -9.4690 -8.3776 -11.6501 -9.4792 -8.3946 -11.8707 -10.3091 -8.1867 -12.3102 -10.2410 -8.1993 -12.5476 -9.9675 -8.2500 -14.2860 -8.9569 -7.7726 -15.4467 -7.9858 -7.0059 -16.1989 -3.0285 -6.9754 -14.8646 -2.9778 -7.6712 -13.5360 -2.7742 -8.5187 -11.7357 -2.8299 -9.2699 -11.9086 -2.8178 -9.8495 -11.4709 -2.8188 -10.1543 -11.0330 -2.8200 -10.2376 -10.6136 -2.8189 -10.1461 -10.1996 -2.8184 -9.8356 -10.3722 -2.8302 -9.2697 -8.5741 -2.7749 -8.5181 -7.2460 -2.9789 -7.6703 -5.9099 -3.0302 -6.9741 -6.6502 -7.9849 -7.0055 -7.8115 -8.9551 -7.7728 -9.5531 -9.9661 -8.2504 -9.9105 -10.3764 -8.1744 -11.4312 -10.3773 -8.1741 -11.8707 -10.3091 -8.1867 -11.9751 -10.3770 -7.7866 -12.5400 -10.3081 -7.8378 -13.3704 -10.0314 -8.0429 -14.3440 -9.0799 -7.4323 -15.9211 -7.5411 -6.4816 -16.3224 -2.6222 -6.7773 -15.1119 -2.0978 -7.7311 -14.0632 -1.4525 -7.6491 -11.6049 -0.9886 -8.6732 -11.4903 -1.0976 -8.8265 -11.2539 -1.0933 -8.8204 -11.0493 -1.0845 -8.8079 -10.8529 -1.0942 -8.8215 -10.6222 -1.0952 -8.8228 -10.5112 -0.9887 -8.6731 -8.0538 -1.4532 -7.6486 -7.0003 -2.0991 -7.7302 -5.7882 -2.6239 -6.7760 -6.1767 -7.5407 -6.4809 -7.7555 -9.0779 -7.4326 -8.7288 -10.0291 -8.0435 -9.9806 -10.4452 -7.7357 -11.4101 -10.4460 -7.7354 -11.9751 -10.3770 -7.7866 -12.0730 -10.4184 -7.5381 -12.6754 -10.3542 -7.5987 -13.4174 -10.0964 -7.8413 -14.4295 -9.0750 -7.0069 -16.0651 -7.4989 -6.2942 -16.4745 -1.6221 -6.5524 -15.5363 -1.5100 -7.6004 -13.8214 -1.3976 -7.4182 -12.3745 -0.6932 -8.4252 -11.8685 -0.9139 -8.5976 -11.4033 -0.7811 -8.6261 -11.0438 -0.7140 -8.6261 -10.6988 -0.7877 -8.6260 -10.2362 -0.9089 -8.5934 -9.7430 -0.6935 -8.4250 -8.2972 -1.3982 -7.4178 -6.5769 -1.5114 -7.5994 -5.6396 -1.6237 -6.5512 -6.0328 -7.4985 -6.2935 -7.6725 -9.0729 -7.0074 -8.6830 -10.0941 -7.8420 -9.8026 -10.4816 -7.4779 -11.4705 -10.4826 -7.4776 -12.0730 -10.4184 -7.5381 -12.1274 -10.4374 -7.3332 -12.7570 -10.3716 -7.3648 -13.4999 -10.1072 -7.4913 -14.4427 -9.0602 -6.8042 -16.3154 -7.5496 -5.8965 -16.5603 -0.8174 -6.3235 -16.0214 -0.7488 -7.3505 -14.0773 -0.5457 -7.7128 -12.4676 0.5435 -8.8213 -11.8624 0.4118 -8.7568 -11.3929 0.3260 -8.7890 -11.0448 0.3004 -8.8060 -10.7111 0.3284 -8.7873 -10.2417 0.4147 -8.7582 -9.6502 0.5431 -8.8210 -8.0413 -0.5463 -7.7124 -6.0933 -0.7503 -7.3494 -5.5565 -0.8189 -6.3225 -5.7826 -7.5492 -5.8957 -7.6606 -9.0581 -6.8046 -8.6028 -10.1047 -7.4920 -9.7226 -10.5022 -7.3021 -11.4979 -10.5033 -7.3017 -12.1274 -10.4374 -7.3332 -12.1785 -10.4244 -7.1139 -12.8270 -10.3576 -7.1222 -13.5199 -10.0891 -7.1559 -14.4702 -9.0868 -6.5777 -16.4676 -7.4580 -5.6456 -16.7230 -0.6472 -5.9103 -16.4438 1.4278 -7.3677 -14.9219 1.0252 -7.7020 -12.6499 1.6446 -8.7568 -12.0965 1.2955 -8.8380 -11.5085 1.4412 -8.8332 -11.0408 1.5218 -8.8260 -10.5920 1.4333 -8.8339 -10.0097 1.3035 -8.8360 -9.4697 1.6442 -8.7566 -7.1978 1.0243 -7.7015 -5.6740 1.4263 -7.3667 -5.3952 -0.6486 -5.9093 -5.6307 -7.4578 -5.6447 -7.6345 -9.0846 -6.5782 -8.5853 -10.0866 -7.1567 -9.6287 -10.4902 -7.1060 -11.5300 -10.4913 -7.1056 -12.1785 -10.4244 -7.1139 -12.1971 -10.4333 -6.7686 -12.8596 -10.3713 -6.7769 -13.5951 -10.1223 -6.8105 -14.5049 -9.0613 -6.2809 -16.6282 -7.5008 -5.2973 -16.9186 -0.0995 -5.5469 -16.6968 2.7218 -6.6630 -15.6381 2.2935 -7.3765 -13.1618 2.9928 -8.2005 -12.4111 3.3870 -8.1033 -11.6428 3.1039 -8.3600 -11.0364 2.9657 -8.4682 -10.4552 3.1171 -8.3494 -9.6946 3.3776 -8.1055 -8.9605 2.9924 -8.2003 -6.4828 2.2926 -7.3759 -5.4241 2.7206 -6.6622 -5.2012 -0.1009 -5.5460 -5.4705 -7.5006 -5.2964 -7.6017 -9.0591 -6.2814 -8.5121 -10.1197 -6.8113 -9.6198 -10.4942 -6.7607 -11.5345 -10.4953 -6.7603 -12.1971 -10.4333 -6.7686 -12.1952 -10.4132 -6.2411 -12.8708 -10.3476 -6.2517 -13.7261 -10.0845 -6.2941 -14.5375 -9.0601 -6.0380 -16.7921 -7.5280 -4.8135 -17.2088 0.5789 -5.0618 -17.0402 3.4954 -5.0082 -15.7686 4.3832 -6.2667 -13.8196 4.9297 -6.7465 -12.6884 5.6870 -6.6340 -11.7459 5.9043 -6.6385 -11.0341 5.9413 -6.6476 -10.3514 5.9007 -6.6376 -9.4112 5.6691 -6.6366 -8.3060 4.9294 -6.7463 -6.3557 4.3825 -6.2663 -5.0842 3.4946 -5.0076 -4.9125 0.5777 -5.0609 -5.3074 -7.5278 -4.8126 -7.5705 -9.0579 -6.0386 -8.3840 -10.0820 -6.2950 -9.6722 -10.4778 -6.2310 -11.5195 -10.4787 -6.2306 -12.1952 -10.4132 -6.2411 -12.1964 -10.4141 -5.5570 -12.8872 -10.3471 -5.5537 -13.8665 -10.0784 -5.5409 -14.5517 -9.0468 -5.6155 -16.8882 -7.6099 -4.7480 -17.3519 1.4013 -2.9604 -17.2800 3.7621 -3.8426 -15.3929 5.5397 -3.4755 -15.0941 6.0754 -4.4240 -12.5955 7.0764 -3.7975 -11.5962 7.0577 -4.0457 -11.0417 6.9851 -4.1850 -10.5099 7.0647 -4.0322 -9.4744 7.0528 -3.8121 -7.0333 6.0751 -4.4238 -6.7353 5.5394 -3.4753 -4.8457 3.7613 -3.8421 -4.7738 1.4005 -2.9599 -5.2104 -7.6097 -4.7470 -7.5589 -9.0447 -5.6161 -8.2477 -10.0760 -5.5417 -9.7220 -10.4803 -5.5605 -11.5057 -10.4811 -5.5602 -12.1964 -10.4141 -5.5570 -12.2022 -10.5011 -5.1846 -12.8945 -10.4346 -5.1204 -13.8657 -10.1682 -4.8637 -14.5959 -9.0339 -5.1626 -16.8440 -7.6897 -4.1612 -17.5753 1.4839 -2.1512 -16.5025 3.7693 -1.3418 -15.6024 5.6542 -0.6076 -15.0396 6.0579 -0.7828 -12.6002 7.4644 -0.6486 -11.6032 7.5852 -0.6540 -11.0419 7.5416 -0.6649 -10.5035 7.5894 -0.6529 -9.4721 7.4313 -0.6518 -7.0898 6.0578 -0.7827 -6.5269 5.6540 -0.6075 -5.6263 3.7691 -1.3416 -4.5507 1.4832 -2.1507 -5.2578 -7.6892 -4.1605 -7.5171 -9.0320 -5.1632 -8.2524 -10.1661 -4.8645 -9.7123 -10.5668 -5.2491 -11.5100 -10.5675 -5.2488 -12.2022 -10.5011 -5.1846 -12.1554 -10.6541 -4.8816 -12.8228 -10.6299 -4.7893 -13.7853 -10.5323 -4.4205 -14.5941 -9.1434 -4.8518 -16.8658 -7.7204 -3.5573 -17.2249 0.8681 -0.5763 -17.1903 3.5627 0.2760 -15.4181 4.7291 2.3249 -15.0888 5.2702 2.5954 -12.5967 6.3641 2.4240 -11.5976 6.2385 2.4308 -11.0424 6.1175 2.4447 -10.5098 6.2502 2.4295 -9.4747 6.3383 2.4280 -7.0406 5.2701 2.5955 -6.7113 4.7289 2.3250 -4.9379 3.5623 0.2762 -4.9023 0.8676 -0.5759 -5.2385 -7.7198 -3.5568 -7.5206 -9.1414 -4.8524 -8.3353 -10.5303 -4.4213 -9.7811 -10.6778 -4.9741 -11.4880 -10.6784 -4.9739 -12.1554 -10.6541 -4.8816 -12.1060 -10.9330 -4.6566 -12.7567 -10.9282 -4.5755 -13.7861 -10.9082 -4.2514 -14.5248 -9.3676 -4.6029 -16.7072 -7.9939 -3.0695 -17.0226 -0.9850 0.5426 -16.9565 2.9546 1.8872 -16.1912 2.5166 4.5379 -15.5456 3.4371 5.0361 -13.2758 3.5056 5.3825 -11.9367 3.9793 5.3686 -11.0276 4.1629 5.3406 -10.1555 3.9615 5.3714 -8.7999 3.5039 5.3744 -6.5822 3.4367 5.0364 -5.9363 2.5161 4.5382 -5.1717 2.9542 1.8874 -5.1036 -0.9856 0.5430 -5.4001 -7.9928 -3.0692 -7.5915 -9.3656 -4.6035 -8.3352 -10.9060 -4.2523 -9.8819 -10.9373 -4.7379 -11.4553 -10.9379 -4.7377 -12.1060 -10.9330 -4.6566 -12.0732 -11.1528 -4.5757 -12.7135 -11.1481 -4.5052 -13.7918 -11.1287 -4.2236 -14.5627 -9.8955 -4.4443 -16.6615 -8.0917 -2.9090 -16.6587 -3.0363 0.6342 -16.8846 1.8437 3.1275 -16.6978 0.7696 4.9108 -13.6273 0.3333 5.7719 -12.7315 0.6974 6.1051 -11.7850 0.2351 6.2334 -11.0332 0.0278 6.2627 -10.3122 0.2551 6.2306 -9.3754 0.6887 6.0973 -8.5005 0.3331 5.7721 -5.4274 0.7686 4.9113 -5.2428 1.8431 3.1278 -5.4661 -3.0369 0.6346 -5.4466 -8.0905 -2.9088 -7.5537 -9.8930 -4.4451 -8.3295 -11.1263 -4.2246 -9.9501 -11.1570 -4.6463 -11.4329 -11.1575 -4.6461 -12.0732 -11.1528 -4.5757 -12.0351 -11.3996 -4.4765 -12.6585 -11.4059 -4.4162 -13.7547 -11.4304 -4.1756 -14.6064 -10.1352 -4.3637 -16.5974 -8.6171 -2.9881 -16.3120 -4.9811 0.8818 -16.8553 -2.2190 2.4587 -15.7416 -1.2005 4.9483 -13.8543 -2.2669 5.2052 -12.4460 -2.3691 5.9513 -11.6095 -2.1277 6.1529 -11.0401 -2.0251 6.1844 -10.4938 -2.1376 6.1499 -9.6474 -2.3668 5.9339 -8.2724 -2.2672 5.2054 -6.3836 -1.2012 4.9488 -5.2690 -2.2199 2.4592 -5.8115 -4.9814 0.8822 -5.5094 -8.6153 -2.9883 -7.5100 -10.1324 -4.3647 -8.3669 -11.4279 -4.1766 -10.0146 -11.3928 -4.5369 -11.4118 -11.3933 -4.5367 -12.0351 -11.3996 -4.4765 -12.1051 -11.5751 -4.4670 -12.7427 -11.5859 -4.4168 -13.6718 -11.6281 -4.2160 -14.7164 -10.6749 -4.1591 -16.3313 -9.2758 -3.4638 -16.3977 -5.9130 0.6407 -16.3480 -5.0769 1.0773 -15.8217 -2.5700 4.1197 -13.4344 -5.2508 4.3582 -12.2289 -5.2278 4.6354 -11.5226 -5.2287 4.6242 -11.0444 -5.2305 4.6017 -10.5856 -5.2285 4.6264 -9.8703 -5.2284 4.6289 -8.6924 -5.2509 4.3582 -6.3031 -2.5706 4.1201 -5.7752 -5.0773 1.0777 -5.7242 -5.9132 0.6410 -5.7744 -9.2729 -3.4644 -7.3996 -10.6714 -4.1604 -8.4499 -11.6255 -4.2171 -9.8467 -11.5638 -4.5175 -11.4676 -11.5644 -4.5173 -12.1051 -11.5751 -4.4670 -12.1066 -11.8205 -4.4340 -12.7431 -11.8201 -4.3941 -13.6580 -11.8182 -4.2345 -14.7716 -11.1754 -4.1132 -16.1658 -10.0111 -3.3628 -16.4367 -6.3544 0.0620 -16.3342 -7.1869 0.7602 -15.8248 -3.6435 3.4027 -13.4324 -6.4688 3.4082 -12.2361 -6.2574 3.5520 -11.5271 -6.5955 3.5462 -11.0449 -6.7436 3.5346 -10.5824 -6.5812 3.5474 -9.8647 -6.2624 3.5487 -8.6957 -6.4687 3.4083 -6.2998 -3.6440 3.4031 -5.7860 -7.1866 0.7603 -5.6841 -6.3545 0.0623 -5.9401 -10.0069 -3.3640 -7.3436 -11.1711 -4.1149 -8.4637 -11.8155 -4.2357 -9.8393 -11.8201 -4.4743 -11.4702 -11.8208 -4.4740 -12.1066 -11.8205 -4.4340 -12.1144 -12.0745 -4.4602 -12.7513 -12.0932 -4.4102 -13.6375 -12.1671 -4.2107 -14.8761 -11.5438 -4.2174 -16.0284 -10.7719 -2.7507 -16.2833 -8.3526 -0.8624 -16.3741 -8.1695 0.5461 -15.8057 -7.0390 1.9889 -13.4586 -8.2137 3.5256 -12.1629 -8.3527 3.2670 -11.4847 -8.3469 3.2773 -11.0468 -8.3356 3.2982 -10.6269 -8.3480 3.2752 -9.9358 -8.3493 3.2730 -8.6689 -8.2134 3.5255 -6.3172 -7.0387 1.9889 -5.7440 -8.1684 0.5460 -5.8340 -8.3513 -0.8626 -6.0797 -10.7663 -2.7527 -7.2369 -11.5384 -4.2196 -8.4841 -12.1640 -4.2120 -9.8166 -12.0551 -4.5105 -11.4776 -12.0559 -4.5101 -12.1144 -12.0745 -4.4602 -12.1032 -12.3162 -4.4667 -12.7359 -12.3394 -4.4177 -13.6349 -12.4314 -4.2221 -14.8416 -11.9554 -4.2901 -16.0250 -11.5554 -2.5280 -16.2599 -10.0355 -0.5854 -16.3748 -10.4023 0.7665 -15.7993 -9.1232 2.5708 -13.4665 -10.3377 4.0146 -12.1382 -10.5782 3.8834 -11.4704 -10.5682 3.8885 -11.0472 -10.5486 3.8990 -10.6414 -10.5700 3.8874 -9.9594 -10.5722 3.8863 -8.6606 -10.3365 4.0141 -6.3209 -9.1214 2.5702 -5.7384 -10.3979 0.7648 -5.8542 -10.0319 -0.5866 -6.0808 -11.5474 -2.5312 -7.2706 -11.9491 -4.2927 -8.4875 -12.4283 -4.2235 -9.8382 -12.2923 -4.5160 -11.4704 -12.2931 -4.5157 -12.1032 -12.3162 -4.4667 -12.1093 -12.7048 -4.6697 -12.7327 -12.7124 -4.6365 -13.5318 -12.7420 -4.5042 -15.2397 -12.5001 -4.1466 -16.2359 -12.5979 -2.0875 -16.7586 -12.4391 -0.2510 -16.2385 -12.7907 1.6013 -15.8320 -12.1995 2.7774 -13.4566 -12.3041 5.0461 -12.1390 -12.7705 4.8987 -11.4716 -12.7511 4.9043 -11.0473 -12.7128 4.9160 -10.6403 -12.7543 4.9029 -9.9590 -12.7583 4.9016 -8.6705 -12.3009 5.0445 -6.2850 -12.1901 2.7732 -5.8756 -12.7795 1.5963 -5.3444 -12.4277 -0.2556 -5.8681 -12.5863 -2.0923 -6.8699 -12.4918 -4.1501 -8.5898 -12.7385 -4.5057 -9.7913 -12.6962 -4.7033 -11.4859 -12.6971 -4.7029 -12.1093 -12.7048 -4.6697'/> |
| 33 | </NurbsPatchSurface> |
| 34 | </Shape> |
| 35 | </Transform> |
| 36 | </Transform> |
| 37 | </Transform> |
| 38 |
<!-- ROUTE information for CI node:
[from TS.fraction_changed to set_fraction
]
[from value_changed to NC.set_point
]
-->
<CoordinateInterpolator DEF='CI' key='0 .5 1' keyValue='-11.7578 -6.7464 -6.3137 -12.1236 -6.7185 -6.3208 -12.2527 -6.6067 -6.3488 -12.9135 -6.5388 -6.1805 -13.2555 -6.5671 -6.2433 -13.3467 -6.0869 -6.2392 -13.0345 -6.1151 -6.2725 -12.6849 -6.0054 -6.3250 -12.4115 -6.0347 -6.3110 -11.8663 -6.0277 -6.3143 -11.3996 -6.0279 -6.3142 -11.0448 -6.0284 -6.3139 -10.7044 -6.0278 -6.3142 -10.2390 -6.0278 -6.3142 -9.7061 -6.0346 -6.3109 -9.4321 -6.0053 -6.3249 -9.0820 -6.1149 -6.2724 -8.7692 -6.0867 -6.2390 -8.8599 -6.5668 -6.2433 -9.2032 -6.5386 -6.1805 -9.8642 -6.6066 -6.3488 -10.0582 -6.7742 -6.3067 -11.3921 -6.7743 -6.3067 -11.7578 -6.7464 -6.3137 -11.6030 -7.9766 -6.1488 -11.9363 -7.9616 -6.1558 -12.4259 -7.9017 -6.1838 -13.2492 -8.2633 -6.0153 -14.0886 -7.6470 -6.0782 -15.0765 -5.7190 -6.0746 -13.8819 -4.4841 -6.1083 -13.3069 -4.6315 -6.1608 -11.3438 -4.5916 -6.1468 -11.9470 -4.6009 -6.1501 -11.5278 -4.6005 -6.1500 -11.0407 -4.5997 -6.1497 -10.5734 -4.6006 -6.1499 -10.1880 -4.6007 -6.1499 -10.7773 -4.5916 -6.1468 -8.8119 -4.6316 -6.1606 -8.2360 -4.4843 -6.1081 -7.0343 -5.7192 -6.0740 -8.0234 -7.6462 -6.0783 -8.8659 -8.2624 -6.0155 -9.6905 -7.9012 -6.1839 -10.4261 -7.9914 -6.1419 -11.2697 -7.9915 -6.1419 -11.6030 -7.9766 -6.1488 -11.6080 -7.8431 -7.9041 -11.9028 -7.8274 -7.9111 -12.0410 -7.7644 -7.9391 -13.2615 -8.1429 -7.7706 -13.9667 -7.5727 -7.8337 -14.9137 -5.8044 -7.8305 -13.8868 -4.6161 -7.8642 -13.0560 -4.7729 -7.9165 -12.3076 -4.7307 -7.9025 -11.8700 -4.7405 -7.9057 -11.4079 -4.7401 -7.9056 -11.0408 -4.7393 -7.9053 -10.6886 -4.7402 -7.9056 -10.2308 -4.7404 -7.9055 -9.8031 -4.7308 -7.9023 -9.0533 -4.7731 -7.9162 -8.2211 -4.6166 -7.8636 -7.1868 -5.8050 -7.8296 -8.1341 -7.5721 -7.8336 -8.8419 -8.1421 -7.7707 -10.0646 -7.7641 -7.9391 -10.2724 -7.8585 -7.8971 -11.3133 -7.8587 -7.8971 -11.6080 -7.8431 -7.9041 -11.7411 -6.5034 -8.3343 -12.1120 -6.4742 -8.3414 -12.3235 -6.3574 -8.3696 -12.7601 -6.3194 -8.2009 -13.0094 -6.4316 -8.2655 -13.0988 -6.2393 -8.2545 -12.9193 -6.3550 -8.3128 -12.7061 -6.2490 -8.2718 -12.3951 -6.3225 -8.6066 -11.8592 -6.1624 -8.5282 -11.3932 -6.1688 -8.5314 -11.0376 -6.1818 -8.5377 -10.6966 -6.1675 -8.5307 -10.2322 -6.1662 -8.5300 -9.7073 -6.3225 -8.6064 -9.3982 -6.2490 -8.2716 -9.1840 -6.3550 -8.3126 -9.0047 -6.2393 -8.2542 -9.0939 -6.4315 -8.2652 -9.3445 -6.3194 -8.2007 -9.7806 -6.3573 -8.3694 -10.0983 -6.5325 -8.3272 -11.3703 -6.5325 -8.3273 -11.7411 -6.5034 -8.3343 -11.7252 -6.6688 -8.9651 -12.0870 -6.6401 -8.9914 -12.2801 -6.5253 -9.0965 -12.8529 -6.4751 -8.4661 -13.1680 -6.4987 -8.4925 -13.2565 -6.2361 -8.7108 -12.9884 -6.1741 -8.9398 -12.6839 -6.0900 -9.0936 -12.3981 -6.1574 -9.1862 -11.8566 -5.9987 -9.1646 -11.3904 -6.0051 -9.1654 -11.0356 -6.0180 -9.1671 -10.6952 -6.0039 -9.1651 -10.2305 -6.0025 -9.1649 -9.7004 -6.1575 -9.1859 -9.4150 -6.0902 -9.0933 -9.1107 -6.1743 -8.9394 -8.8433 -6.2362 -8.7104 -8.9331 -6.4987 -8.4922 -9.2492 -6.4751 -8.4659 -9.8185 -6.5253 -9.0963 -10.1094 -6.6974 -8.9387 -11.3634 -6.6975 -8.9388 -11.7252 -6.6688 -8.9651 -11.7052 -6.9152 -8.9148 -12.0527 -6.8878 -8.9765 -12.2119 -6.7783 -9.2234 -13.0192 -6.6980 -8.6275 -13.3102 -6.6375 -8.4724 -13.5219 -6.0859 -8.7726 -13.0882 -5.9402 -9.1005 -12.6560 -5.8397 -9.4460 -12.4046 -5.9114 -9.4397 -11.8553 -5.7518 -9.4412 -11.3888 -5.7582 -9.4411 -11.0349 -5.7711 -9.4409 -10.6954 -5.7570 -9.4410 -10.2301 -5.7557 -9.4409 -9.6926 -5.9116 -9.4393 -9.4409 -5.8400 -9.4456 -9.0100 -5.9404 -9.1000 -8.5770 -6.0861 -8.7720 -8.7904 -6.6374 -8.4720 -9.0809 -6.6979 -8.6272 -9.8854 -6.7783 -9.2232 -10.1270 -6.9425 -8.8530 -11.3577 -6.9425 -8.8530 -11.7052 -6.9152 -8.9148 -11.6502 -7.2713 -8.6786 -11.9655 -7.2442 -8.6874 -12.0888 -7.1353 -8.7225 -13.2240 -7.3040 -8.6894 -13.6243 -6.8649 -8.4265 -13.9721 -5.6859 -8.6914 -13.2974 -5.7401 -8.8112 -12.6597 -5.3683 -9.2812 -12.1895 -5.3573 -9.3395 -11.8717 -5.4363 -9.4519 -11.4149 -5.4332 -9.4473 -11.0342 -5.4268 -9.4381 -10.6690 -5.4338 -9.4481 -10.2199 -5.4346 -9.4490 -9.9102 -5.3575 -9.3392 -9.4397 -5.3687 -9.2808 -8.8028 -5.7405 -8.8107 -8.1270 -5.6864 -8.6907 -8.4751 -6.8648 -8.4261 -8.8739 -7.3038 -8.6892 -10.0118 -7.1352 -8.7224 -10.1972 -7.2984 -8.6698 -11.3349 -7.2985 -8.6699 -11.6502 -7.2713 -8.6786 -11.6067 -7.5584 -8.5898 -11.8991 -7.5984 -8.5615 -12.0140 -7.7580 -8.4484 -13.3542 -7.6863 -8.5690 -13.8224 -7.2778 -8.3965 -14.4606 -5.6560 -8.4649 -13.5315 -5.3637 -8.5927 -12.8937 -4.8990 -8.8226 -12.1626 -5.2998 -9.2282 -11.8748 -5.0172 -9.3425 -11.4191 -5.0285 -9.3353 -11.0350 -5.0515 -9.3249 -10.6664 -5.0264 -9.3362 -10.2193 -5.0240 -9.3396 -9.9381 -5.3001 -9.2279 -9.2097 -4.8994 -8.8221 -8.5705 -5.3641 -8.5922 -7.6382 -5.6567 -8.4640 -8.2756 -7.2775 -8.3961 -8.7436 -7.6858 -8.5688 -10.0879 -7.7577 -8.4484 -10.2595 -7.5184 -8.6181 -11.3143 -7.5185 -8.6181 -11.6067 -7.5584 -8.5898 -11.5903 -8.0358 -8.4426 -11.8895 -8.0546 -8.4297 -12.1261 -8.1296 -8.3779 -13.3419 -8.1023 -8.4911 -14.0591 -7.6287 -8.3228 -15.0008 -5.5996 -8.0218 -13.8058 -4.8398 -8.4008 -13.2667 -4.6826 -8.7134 -11.5262 -4.7356 -9.2539 -11.9241 -4.4749 -8.9891 -11.4953 -4.6412 -9.3098 -11.0317 -4.7243 -9.4544 -10.5883 -4.6333 -9.2957 -10.1900 -4.4812 -8.9951 -10.5763 -4.7357 -9.2538 -8.8372 -4.6831 -8.7128 -8.2982 -4.8404 -8.4001 -7.0987 -5.6005 -8.0207 -8.0377 -7.6282 -8.3225 -8.7558 -8.1016 -8.4910 -9.9758 -8.1291 -8.3779 -10.3306 -8.0169 -8.4556 -11.2910 -8.0170 -8.4556 -11.5903 -8.0358 -8.4426 -11.5701 -8.2823 -8.4684 -11.8689 -8.3492 -8.4729 -12.1829 -8.6162 -8.4909 -13.4186 -8.4335 -8.3360 -14.2852 -7.8442 -8.1850 -15.3916 -5.5471 -7.6866 -14.0573 -4.3973 -8.2159 -13.0274 -4.2775 -8.6720 -12.5707 -4.2994 -9.1457 -11.3955 -4.6512 -9.4821 -11.1227 -4.6214 -9.5618 -11.0474 -4.5866 -9.5715 -10.9750 -4.6247 -9.5608 -10.6782 -4.6430 -9.4741 -9.5328 -4.2998 -9.1453 -9.0785 -4.2780 -8.6715 -8.0485 -4.3981 -8.2152 -6.7082 -5.5481 -7.6855 -7.8111 -7.8435 -8.1847 -8.6796 -8.4325 -8.3360 -9.9175 -8.6156 -8.4910 -10.3897 -8.2153 -8.4639 -11.2712 -8.2155 -8.4639 -11.5701 -8.2823 -8.4684 -11.6073 -8.9557 -8.4527 -11.9269 -8.9640 -8.4467 -12.2560 -8.9969 -8.4229 -13.5339 -8.6234 -8.1919 -14.5228 -8.2634 -7.9854 -15.7945 -5.1717 -7.2880 -14.2361 -3.8287 -8.1139 -13.0801 -3.9757 -8.5670 -12.5771 -3.4023 -9.3208 -11.8440 -3.8678 -9.9532 -11.3695 -4.3205 -9.8694 -11.0362 -4.4701 -9.7949 -10.7164 -4.3062 -9.8765 -10.2389 -3.8571 -9.9381 -9.5279 -3.4028 -9.3204 -9.0272 -3.9762 -8.5665 -7.8714 -3.8295 -8.1131 -6.3069 -5.1730 -7.2866 -7.5728 -8.2623 -7.9852 -8.5648 -8.6222 -8.1920 -9.8446 -8.9961 -8.4230 -10.3388 -8.9472 -8.4587 -11.2878 -8.9475 -8.4586 -11.6073 -8.9557 -8.4527 -11.6501 -9.4792 -8.3946 -11.9952 -9.4894 -8.4116 -12.3582 -9.5298 -8.4798 -13.8094 -8.7578 -8.0328 -14.9991 -8.5041 -7.4886 -16.0184 -4.1680 -7.0990 -14.5141 -3.5446 -7.9691 -13.3300 -3.2493 -8.4873 -11.9088 -3.3299 -9.4786 -11.8938 -3.3122 -10.1406 -11.4481 -3.3135 -10.4998 -11.0318 -3.3153 -10.5993 -10.6332 -3.3136 -10.4900 -10.2065 -3.3130 -10.1247 -10.1961 -3.3302 -9.4784 -8.7793 -3.2499 -8.4867 -7.5943 -3.5456 -7.9683 -6.0865 -4.1697 -7.0976 -7.0966 -8.5027 -7.4885 -8.2890 -8.7564 -8.0329 -9.7414 -9.5287 -8.4801 -10.2877 -9.4686 -8.3777 -11.3050 -9.4690 -8.3776 -11.6501 -9.4792 -8.3946 -11.8707 -10.3091 -8.1867 -12.3102 -10.2410 -8.1993 -12.5476 -9.9675 -8.2500 -14.2860 -8.9569 -7.7726 -15.4467 -7.9858 -7.0059 -16.1989 -3.0285 -6.9754 -14.8646 -2.9778 -7.6712 -13.5360 -2.7742 -8.5187 -11.7357 -2.8299 -9.2699 -11.9086 -2.8178 -9.8495 -11.4709 -2.8188 -10.1543 -11.0330 -2.8200 -10.2376 -10.6136 -2.8189 -10.1461 -10.1996 -2.8184 -9.8356 -10.3722 -2.8302 -9.2697 -8.5741 -2.7749 -8.5181 -7.2460 -2.9789 -7.6703 -5.9099 -3.0302 -6.9741 -6.6502 -7.9849 -7.0055 -7.8115 -8.9551 -7.7728 -9.5531 -9.9661 -8.2504 -9.9105 -10.3764 -8.1744 -11.4312 -10.3773 -8.1741 -11.8707 -10.3091 -8.1867 -11.9751 -10.3770 -7.7866 -12.5400 -10.3081 -7.8378 -13.3704 -10.0314 -8.0429 -14.3440 -9.0799 -7.4323 -15.9211 -7.5411 -6.4816 -16.3224 -2.6222 -6.7773 -15.1119 -2.0978 -7.7311 -14.0632 -1.4525 -7.6491 -11.6049 -0.9886 -8.6732 -11.4903 -1.0976 -8.8265 -11.2539 -1.0933 -8.8204 -11.0493 -1.0845 -8.8079 -10.8529 -1.0942 -8.8215 -10.6222 -1.0952 -8.8228 -10.5112 -0.9887 -8.6731 -8.0538 -1.4532 -7.6486 -7.0003 -2.0991 -7.7302 -5.7882 -2.6239 -6.7760 -6.1767 -7.5407 -6.4809 -7.7555 -9.0779 -7.4326 -8.7288 -10.0291 -8.0435 -9.9806 -10.4452 -7.7357 -11.4101 -10.4460 -7.7354 -11.9751 -10.3770 -7.7866 -12.0730 -10.4184 -7.5381 -12.6754 -10.3542 -7.5987 -13.4174 -10.0964 -7.8413 -14.4295 -9.0750 -7.0069 -16.0651 -7.4989 -6.2942 -16.4745 -1.6221 -6.5524 -15.5363 -1.5100 -7.6004 -13.8214 -1.3976 -7.4182 -12.3745 -0.6932 -8.4252 -11.8685 -0.9139 -8.5976 -11.4033 -0.7811 -8.6261 -11.0438 -0.7140 -8.6261 -10.6988 -0.7877 -8.6260 -10.2362 -0.9089 -8.5934 -9.7430 -0.6935 -8.4250 -8.2972 -1.3982 -7.4178 -6.5769 -1.5114 -7.5994 -5.6396 -1.6237 -6.5512 -6.0328 -7.4985 -6.2935 -7.6725 -9.0729 -7.0074 -8.6830 -10.0941 -7.8420 -9.8026 -10.4816 -7.4779 -11.4705 -10.4826 -7.4776 -12.0730 -10.4184 -7.5381 -12.1274 -10.4374 -7.3332 -12.7570 -10.3716 -7.3648 -13.4999 -10.1072 -7.4913 -14.4427 -9.0602 -6.8042 -16.3154 -7.5496 -5.8965 -16.5603 -0.8174 -6.3235 -16.0214 -0.7488 -7.3505 -14.0773 -0.5457 -7.7128 -12.4676 0.5435 -8.8213 -11.8624 0.4118 -8.7568 -11.3929 0.3260 -8.7890 -11.0448 0.3004 -8.8060 -10.7111 0.3284 -8.7873 -10.2417 0.4147 -8.7582 -9.6502 0.5431 -8.8210 -8.0413 -0.5463 -7.7124 -6.0933 -0.7503 -7.3494 -5.5565 -0.8189 -6.3225 -5.7826 -7.5492 -5.8957 -7.6606 -9.0581 -6.8046 -8.6028 -10.1047 -7.4920 -9.7226 -10.5022 -7.3021 -11.4979 -10.5033 -7.3017 -12.1274 -10.4374 -7.3332 -12.1785 -10.4244 -7.1139 -12.8270 -10.3576 -7.1222 -13.5199 -10.0891 -7.1559 -14.4702 -9.0868 -6.5777 -16.4676 -7.4580 -5.6456 -16.7230 -0.6472 -5.9103 -16.4438 1.4278 -7.3677 -14.9219 1.0252 -7.7020 -12.6499 1.6446 -8.7568 -12.0965 1.2955 -8.8380 -11.5085 1.4412 -8.8332 -11.0408 1.5218 -8.8260 -10.5920 1.4333 -8.8339 -10.0097 1.3035 -8.8360 -9.4697 1.6442 -8.7566 -7.1978 1.0243 -7.7015 -5.6740 1.4263 -7.3667 -5.3952 -0.6486 -5.9093 -5.6307 -7.4578 -5.6447 -7.6345 -9.0846 -6.5782 -8.5853 -10.0866 -7.1567 -9.6287 -10.4902 -7.1060 -11.5300 -10.4913 -7.1056 -12.1785 -10.4244 -7.1139 -12.1971 -10.4333 -6.7686 -12.8596 -10.3713 -6.7769 -13.5951 -10.1223 -6.8105 -14.5049 -9.0613 -6.2809 -16.6282 -7.5008 -5.2973 -16.9186 -0.0995 -5.5469 -16.6968 2.7218 -6.6630 -15.6381 2.2935 -7.3765 -13.1618 2.9928 -8.2005 -12.4111 3.3870 -8.1033 -11.6428 3.1039 -8.3600 -11.0364 2.9657 -8.4682 -10.4552 3.1171 -8.3494 -9.6946 3.3776 -8.1055 -8.9605 2.9924 -8.2003 -6.4828 2.2926 -7.3759 -5.4241 2.7206 -6.6622 -5.2012 -0.1009 -5.5460 -5.4705 -7.5006 -5.2964 -7.6017 -9.0591 -6.2814 -8.5121 -10.1197 -6.8113 -9.6198 -10.4942 -6.7607 -11.5345 -10.4953 -6.7603 -12.1971 -10.4333 -6.7686 -12.1952 -10.4132 -6.2411 -12.8708 -10.3476 -6.2517 -13.7261 -10.0845 -6.2941 -14.5375 -9.0601 -6.0380 -16.7921 -7.5280 -4.8135 -17.2088 0.5789 -5.0618 -17.0402 3.4954 -5.0082 -15.7686 4.3832 -6.2667 -13.8196 4.9297 -6.7465 -12.6884 5.6870 -6.6340 -11.7459 5.9043 -6.6385 -11.0341 5.9413 -6.6476 -10.3514 5.9007 -6.6376 -9.4112 5.6691 -6.6366 -8.3060 4.9294 -6.7463 -6.3557 4.3825 -6.2663 -5.0842 3.4946 -5.0076 -4.9125 0.5777 -5.0609 -5.3074 -7.5278 -4.8126 -7.5705 -9.0579 -6.0386 -8.3840 -10.0820 -6.2950 -9.6722 -10.4778 -6.2310 -11.5195 -10.4787 -6.2306 -12.1952 -10.4132 -6.2411 -12.1964 -10.4141 -5.5570 -12.8872 -10.3471 -5.5537 -13.8665 -10.0784 -5.5409 -14.5517 -9.0468 -5.6155 -16.8882 -7.6099 -4.7480 -17.3519 1.4013 -2.9604 -17.2800 3.7621 -3.8426 -15.3929 5.5397 -3.4755 -15.0941 6.0754 -4.4240 -12.5955 7.0764 -3.7975 -11.5962 7.0577 -4.0457 -11.0417 6.9851 -4.1850 -10.5099 7.0647 -4.0322 -9.4744 7.0528 -3.8121 -7.0333 6.0751 -4.4238 -6.7353 5.5394 -3.4753 -4.8457 3.7613 -3.8421 -4.7738 1.4005 -2.9599 -5.2104 -7.6097 -4.7470 -7.5589 -9.0447 -5.6161 -8.2477 -10.0760 -5.5417 -9.7220 -10.4803 -5.5605 -11.5057 -10.4811 -5.5602 -12.1964 -10.4141 -5.5570 -12.2022 -10.5011 -5.1846 -12.8945 -10.4346 -5.1204 -13.8657 -10.1682 -4.8637 -14.5959 -9.0339 -5.1626 -16.8440 -7.6897 -4.1612 -17.5753 1.4839 -2.1512 -16.5025 3.7693 -1.3418 -15.6024 5.6542 -0.6076 -15.0396 6.0579 -0.7828 -12.6002 7.4644 -0.6486 -11.6032 7.5852 -0.6540 -11.0419 7.5416 -0.6649 -10.5035 7.5894 -0.6529 -9.4721 7.4313 -0.6518 -7.0898 6.0578 -0.7827 -6.5269 5.6540 -0.6075 -5.6263 3.7691 -1.3416 -4.5507 1.4832 -2.1507 -5.2578 -7.6892 -4.1605 -7.5171 -9.0320 -5.1632 -8.2524 -10.1661 -4.8645 -9.7123 -10.5668 -5.2491 -11.5100 -10.5675 -5.2488 -12.2022 -10.5011 -5.1846 -12.1554 -10.6541 -4.8816 -12.8228 -10.6299 -4.7893 -13.7853 -10.5323 -4.4205 -14.5941 -9.1434 -4.8518 -16.8658 -7.7204 -3.5573 -17.2249 0.8681 -0.5763 -17.1903 3.5627 0.2760 -15.4181 4.7291 2.3249 -15.0888 5.2702 2.5954 -12.5967 6.3641 2.4240 -11.5976 6.2385 2.4308 -11.0424 6.1175 2.4447 -10.5098 6.2502 2.4295 -9.4747 6.3383 2.4280 -7.0406 5.2701 2.5955 -6.7113 4.7289 2.3250 -4.9379 3.5623 0.2762 -4.9023 0.8676 -0.5759 -5.2385 -7.7198 -3.5568 -7.5206 -9.1414 -4.8524 -8.3353 -10.5303 -4.4213 -9.7811 -10.6778 -4.9741 -11.4880 -10.6784 -4.9739 -12.1554 -10.6541 -4.8816 -12.1060 -10.9330 -4.6566 -12.7567 -10.9282 -4.5755 -13.7861 -10.9082 -4.2514 -14.5248 -9.3676 -4.6029 -16.7072 -7.9939 -3.0695 -17.0226 -0.9850 0.5426 -16.9565 2.9546 1.8872 -16.1912 2.5166 4.5379 -15.5456 3.4371 5.0361 -13.2758 3.5056 5.3825 -11.9367 3.9793 5.3686 -11.0276 4.1629 5.3406 -10.1555 3.9615 5.3714 -8.7999 3.5039 5.3744 -6.5822 3.4367 5.0364 -5.9363 2.5161 4.5382 -5.1717 2.9542 1.8874 -5.1036 -0.9856 0.5430 -5.4001 -7.9928 -3.0692 -7.5915 -9.3656 -4.6035 -8.3352 -10.9060 -4.2523 -9.8819 -10.9373 -4.7379 -11.4553 -10.9379 -4.7377 -12.1060 -10.9330 -4.6566 -12.0732 -11.1528 -4.5757 -12.7135 -11.1481 -4.5052 -13.7918 -11.1287 -4.2236 -14.5627 -9.8955 -4.4443 -16.6615 -8.0917 -2.9090 -16.6587 -3.0363 0.6342 -16.8846 1.8437 3.1275 -16.6978 0.7696 4.9108 -13.6273 0.3333 5.7719 -12.7315 0.6974 6.1051 -11.7850 0.2351 6.2334 -11.0332 0.0278 6.2627 -10.3122 0.2551 6.2306 -9.3754 0.6887 6.0973 -8.5005 0.3331 5.7721 -5.4274 0.7686 4.9113 -5.2428 1.8431 3.1278 -5.4661 -3.0369 0.6346 -5.4466 -8.0905 -2.9088 -7.5537 -9.8930 -4.4451 -8.3295 -11.1263 -4.2246 -9.9501 -11.1570 -4.6463 -11.4329 -11.1575 -4.6461 -12.0732 -11.1528 -4.5757 -12.0351 -11.3996 -4.4765 -12.6585 -11.4059 -4.4162 -13.7547 -11.4304 -4.1756 -14.6064 -10.1352 -4.3637 -16.5974 -8.6171 -2.9881 -16.3120 -4.9811 0.8818 -16.8553 -2.2190 2.4587 -15.7416 -1.2005 4.9483 -13.8543 -2.2669 5.2052 -12.4460 -2.3691 5.9513 -11.6095 -2.1277 6.1529 -11.0401 -2.0251 6.1844 -10.4938 -2.1376 6.1499 -9.6474 -2.3668 5.9339 -8.2724 -2.2672 5.2054 -6.3836 -1.2012 4.9488 -5.2690 -2.2199 2.4592 -5.8115 -4.9814 0.8822 -5.5094 -8.6153 -2.9883 -7.5100 -10.1324 -4.3647 -8.3669 -11.4279 -4.1766 -10.0146 -11.3928 -4.5369 -11.4118 -11.3933 -4.5367 -12.0351 -11.3996 -4.4765 -12.1051 -11.5751 -4.4670 -12.7427 -11.5859 -4.4168 -13.6718 -11.6281 -4.2160 -14.7164 -10.6749 -4.1591 -16.3313 -9.2758 -3.4638 -16.3977 -5.9130 0.6407 -16.3480 -5.0769 1.0773 -15.8217 -2.5700 4.1197 -13.4344 -5.2508 4.3582 -12.2289 -5.2278 4.6354 -11.5226 -5.2287 4.6242 -11.0444 -5.2305 4.6017 -10.5856 -5.2285 4.6264 -9.8703 -5.2284 4.6289 -8.6924 -5.2509 4.3582 -6.3031 -2.5706 4.1201 -5.7752 -5.0773 1.0777 -5.7242 -5.9132 0.6410 -5.7744 -9.2729 -3.4644 -7.3996 -10.6714 -4.1604 -8.4499 -11.6255 -4.2171 -9.8467 -11.5638 -4.5175 -11.4676 -11.5644 -4.5173 -12.1051 -11.5751 -4.4670 -12.1066 -11.8205 -4.4340 -12.7431 -11.8201 -4.3941 -13.6580 -11.8182 -4.2345 -14.7716 -11.1754 -4.1132 -16.1658 -10.0111 -3.3628 -16.4367 -6.3544 0.0620 -16.3342 -7.1869 0.7602 -15.8248 -3.6435 3.4027 -13.4324 -6.4688 3.4082 -12.2361 -6.2574 3.5520 -11.5271 -6.5955 3.5462 -11.0449 -6.7436 3.5346 -10.5824 -6.5812 3.5474 -9.8647 -6.2624 3.5487 -8.6957 -6.4687 3.4083 -6.2998 -3.6440 3.4031 -5.7860 -7.1866 0.7603 -5.6841 -6.3545 0.0623 -5.9401 -10.0069 -3.3640 -7.3436 -11.1711 -4.1149 -8.4637 -11.8155 -4.2357 -9.8393 -11.8201 -4.4743 -11.4702 -11.8208 -4.4740 -12.1066 -11.8205 -4.4340 -12.1144 -12.0745 -4.4602 -12.7513 -12.0932 -4.4102 -13.6375 -12.1671 -4.2107 -14.8761 -11.5438 -4.2174 -16.0284 -10.7719 -2.7507 -16.2833 -8.3526 -0.8624 -16.3741 -8.1695 0.5461 -15.8057 -7.0390 1.9889 -13.4586 -8.2137 3.5256 -12.1629 -8.3527 3.2670 -11.4847 -8.3469 3.2773 -11.0468 -8.3356 3.2982 -10.6269 -8.3480 3.2752 -9.9358 -8.3493 3.2730 -8.6689 -8.2134 3.5255 -6.3172 -7.0387 1.9889 -5.7440 -8.1684 0.5460 -5.8340 -8.3513 -0.8626 -6.0797 -10.7663 -2.7527 -7.2369 -11.5384 -4.2196 -8.4841 -12.1640 -4.2120 -9.8166 -12.0551 -4.5105 -11.4776 -12.0559 -4.5101 -12.1144 -12.0745 -4.4602 -12.1032 -12.3162 -4.4667 -12.7359 -12.3394 -4.4177 -13.6349 -12.4314 -4.2221 -14.8416 -11.9554 -4.2901 -16.0250 -11.5554 -2.5280 -16.2599 -10.0355 -0.5854 -16.3748 -10.4023 0.7665 -15.7993 -9.1232 2.5708 -13.4665 -10.3377 4.0146 -12.1382 -10.5782 3.8834 -11.4704 -10.5682 3.8885 -11.0472 -10.5486 3.8990 -10.6414 -10.5700 3.8874 -9.9594 -10.5722 3.8863 -8.6606 -10.3365 4.0141 -6.3209 -9.1214 2.5702 -5.7384 -10.3979 0.7648 -5.8542 -10.0319 -0.5866 -6.0808 -11.5474 -2.5312 -7.2706 -11.9491 -4.2927 -8.4875 -12.4283 -4.2235 -9.8382 -12.2923 -4.5160 -11.4704 -12.2931 -4.5157 -12.1032 -12.3162 -4.4667 -12.1093 -12.7048 -4.6697 -12.7327 -12.7124 -4.6365 -13.5318 -12.7420 -4.5042 -15.2397 -12.5001 -4.1466 -16.2359 -12.5979 -2.0875 -16.7586 -12.4391 -0.2510 -16.2385 -12.7907 1.6013 -15.8320 -12.1995 2.7774 -13.4566 -12.3041 5.0461 -12.1390 -12.7705 4.8987 -11.4716 -12.7511 4.9043 -11.0473 -12.7128 4.9160 -10.6403 -12.7543 4.9029 -9.9590 -12.7583 4.9016 -8.6705 -12.3009 5.0445 -6.2850 -12.1901 2.7732 -5.8756 -12.7795 1.5963 -5.3444 -12.4277 -0.2556 -5.8681 -12.5863 -2.0923 -6.8699 -12.4918 -4.1501 -8.5898 -12.7385 -4.5057 -9.7913 -12.6962 -4.7033 -11.4859 -12.6971 -4.7029 -12.1093 -12.7048 -4.6697 -11.7578 -6.7464 -6.3137 -12.1236 -6.7185 -6.3208 -12.2527 -6.6067 -6.3488 -12.9135 -6.5388 -6.1805 -13.2555 -6.5671 -6.2433 -13.3467 -6.0869 -6.2392 -13.0345 -6.1151 -6.2725 -12.6849 -6.0054 -6.3250 -12.4115 -6.0347 -6.3110 -11.8663 -6.0277 -6.3143 -11.3996 -6.0279 -6.3142 -11.0448 -6.0284 -6.3139 -10.7044 -6.0278 -6.3142 -10.2390 -6.0278 -6.3142 -9.7061 -6.0346 -6.3109 -9.4321 -6.0053 -6.3249 -9.0820 -6.1149 -6.2724 -8.7692 -6.0867 -6.2390 -8.8599 -6.5668 -6.2433 -9.2032 -6.5386 -6.1805 -9.8642 -6.6066 -6.3488 -10.0582 -6.7742 -6.3067 -11.3921 -6.7743 -6.3067 -11.7578 -6.7464 -6.3137 -11.6030 -7.9766 -6.1488 -11.9363 -7.9616 -6.1558 -12.4259 -7.9017 -6.1838 -13.2492 -8.2633 -6.0153 -14.0886 -7.6470 -6.0782 -15.0765 -5.7190 -6.0746 -13.8819 -4.4841 -6.1083 -13.3069 -4.6315 -6.1608 -11.3438 -4.5916 -6.1468 -11.9470 -4.6009 -6.1501 -11.5278 -4.6005 -6.1500 -11.0407 -4.5997 -6.1497 -10.5734 -4.6006 -6.1499 -10.1880 -4.6007 -6.1499 -10.7773 -4.5916 -6.1468 -8.8119 -4.6316 -6.1606 -8.2360 -4.4843 -6.1081 -7.0343 -5.7192 -6.0740 -8.0234 -7.6462 -6.0783 -8.8659 -8.2624 -6.0155 -9.6905 -7.9012 -6.1839 -10.4261 -7.9914 -6.1419 -11.2697 -7.9915 -6.1419 -11.6030 -7.9766 -6.1488 -11.6080 -7.8431 -7.9041 -11.9028 -7.8274 -7.9111 -12.0410 -7.7644 -7.9391 -13.2615 -8.1429 -7.7706 -13.9667 -7.5727 -7.8337 -14.9137 -5.8044 -7.8305 -13.8868 -4.6161 -7.8642 -13.0560 -5.0258 -7.9165 -12.3076 -4.9836 -7.9025 -11.8700 -4.7405 -7.9057 -11.4079 -4.7401 -7.9056 -11.0408 -4.7393 -7.9053 -10.6886 -4.7402 -7.9056 -10.2308 -4.7404 -7.9055 -9.8031 -4.9838 -7.9023 -9.0533 -5.0261 -7.9162 -8.2211 -4.6166 -7.8636 -7.1868 -5.8050 -7.8296 -8.1341 -7.5721 -7.8336 -8.8419 -8.1421 -7.7707 -10.0646 -7.7641 -7.9391 -10.2724 -7.8585 -7.8971 -11.3133 -7.8587 -7.8971 -11.6080 -7.8431 -7.9041 -11.7411 -6.5034 -8.3343 -12.1120 -6.3055 -8.3414 -12.3235 -6.1887 -8.3696 -12.7601 -5.8641 -8.2009 -13.0094 -5.7908 -8.2655 -13.0988 -5.5986 -8.2545 -12.9193 -5.8997 -8.3128 -12.7061 -5.7938 -8.2718 -12.3951 -6.1539 -8.6066 -11.8592 -6.1624 -8.5282 -11.3932 -6.1688 -8.5314 -11.0376 -6.1818 -8.5377 -10.6966 -6.1675 -8.5307 -10.2322 -6.1662 -8.5300 -9.7073 -6.1539 -8.6064 -9.3982 -5.7938 -8.2716 -9.1840 -5.8997 -8.3126 -9.0047 -5.5986 -8.2542 -9.0939 -5.7908 -8.2652 -9.3445 -5.8641 -8.2007 -9.7806 -6.1887 -8.3694 -10.0983 -6.5325 -8.3272 -11.3703 -6.5325 -8.3273 -11.7411 -6.5034 -8.3343 -11.7252 -6.6688 -8.9651 -12.0870 -6.4715 -8.9914 -12.2801 -6.3567 -9.0965 -12.8529 -6.0199 -8.4661 -13.1680 -5.8579 -8.4925 -13.2565 -5.5953 -8.7108 -12.9884 -5.5333 -8.9398 -12.6839 -5.6348 -9.0936 -12.3981 -5.7021 -9.1862 -11.8566 -5.8807 -9.1646 -11.3904 -5.8871 -9.1654 -11.0356 -5.8999 -9.1671 -10.6952 -5.8858 -9.1651 -10.2305 -5.8845 -9.1649 -9.7004 -5.7022 -9.1859 -9.4150 -5.6349 -9.0933 -9.1107 -5.5335 -8.9394 -8.8433 -5.5955 -8.7104 -8.9331 -5.8579 -8.4922 -9.2492 -6.0198 -8.4659 -9.8185 -6.3567 -9.0963 -10.1094 -6.6974 -8.9387 -11.3634 -6.6975 -8.9388 -11.7252 -6.6688 -8.9651 -11.7052 -6.9152 -8.9148 -12.0527 -6.7192 -8.9765 -12.2119 -6.6097 -9.2234 -13.0192 -6.0572 -8.6275 -13.3102 -5.9967 -8.4724 -13.5219 -5.4451 -8.7726 -13.0882 -5.2994 -9.1005 -12.6560 -5.3845 -9.4460 -12.4046 -5.4561 -9.4397 -11.8553 -5.6337 -9.4412 -11.3888 -5.6402 -9.4411 -11.0349 -5.6531 -9.4409 -10.6954 -5.6390 -9.4410 -10.2301 -5.6376 -9.4409 -9.6926 -5.4564 -9.4393 -9.4409 -5.3848 -9.4456 -9.0100 -5.2997 -9.1000 -8.5770 -5.4454 -8.7720 -8.7904 -5.9967 -8.4720 -9.0809 -6.0572 -8.6272 -9.8854 -6.6097 -9.2232 -10.1270 -6.9425 -8.8530 -11.3577 -6.9425 -8.8530 -11.7052 -6.9152 -8.9148 -11.6502 -7.2713 -8.6786 -11.9655 -7.2442 -8.6874 -12.0888 -7.1353 -8.7225 -13.2240 -7.3040 -8.6894 -13.6243 -6.2241 -8.4265 -13.9721 -5.6859 -8.6914 -13.2974 -5.3523 -8.8112 -12.6597 -5.1660 -9.2812 -12.1895 -5.4416 -9.3395 -11.8717 -5.4363 -9.4519 -11.4149 -5.4332 -9.4473 -11.0342 -5.4268 -9.4381 -10.6690 -5.4338 -9.4481 -10.2199 -5.4346 -9.4490 -9.9102 -5.4418 -9.3392 -9.4397 -5.1663 -9.2808 -8.8028 -5.3526 -8.8107 -8.1270 -5.6864 -8.6907 -8.4751 -6.2240 -8.4261 -8.8739 -7.3038 -8.6892 -10.0118 -7.1352 -8.7224 -10.1972 -7.2984 -8.6698 -11.3349 -7.2985 -8.6699 -11.6502 -7.2713 -8.6786 -11.6067 -7.5584 -8.5898 -11.8991 -7.5984 -8.5615 -12.0140 -7.7580 -8.4484 -13.3542 -7.6863 -8.5690 -13.8224 -7.2778 -8.3965 -14.4606 -5.6560 -8.4649 -13.5315 -4.9759 -8.5927 -12.8937 -5.1519 -8.8226 -12.1626 -5.3842 -9.2282 -11.8748 -5.2701 -9.3425 -11.4191 -5.2814 -9.3353 -11.0350 -5.3044 -9.3249 -10.6664 -5.2793 -9.3362 -10.2193 -5.2769 -9.3396 -9.9381 -5.3844 -9.2279 -9.2097 -5.1523 -8.8221 -8.5705 -4.9763 -8.5922 -7.6382 -5.6567 -8.4640 -8.2756 -7.2775 -8.3961 -8.7436 -7.6858 -8.5688 -10.0879 -7.7577 -8.4484 -10.2595 -7.5184 -8.6181 -11.3143 -7.5185 -8.6181 -11.6067 -7.5584 -8.5898 -11.5903 -8.0358 -8.4426 -11.8895 -8.0546 -8.4297 -12.1261 -8.1296 -8.3779 -13.3419 -8.1023 -8.4911 -14.0591 -7.6287 -8.3228 -15.0008 -5.5996 -8.0218 -13.8058 -5.0928 -8.4008 -13.2667 -4.9356 -8.7134 -11.5262 -4.7356 -9.2539 -11.9241 -4.4749 -8.9891 -11.4953 -4.6412 -9.3098 -11.0317 -4.7243 -9.4544 -10.5883 -4.6333 -9.2957 -10.1900 -4.7342 -8.9951 -10.5763 -4.7357 -9.2538 -8.8372 -4.9361 -8.7128 -8.2982 -5.0934 -8.4001 -7.0987 -5.6005 -8.0207 -8.0377 -7.6282 -8.3225 -8.7558 -8.1016 -8.4910 -9.9758 -8.1291 -8.3779 -10.3306 -8.0169 -8.4556 -11.2910 -8.0170 -8.4556 -11.5903 -8.0358 -8.4426 -11.5701 -8.2823 -8.4684 -11.8689 -8.3492 -8.4729 -12.1829 -8.6162 -8.4909 -13.4186 -8.4335 -8.3360 -14.2852 -7.8442 -8.1850 -15.3916 -5.5471 -7.6866 -14.0573 -4.3973 -8.2159 -13.0274 -4.2775 -8.6720 -12.5707 -4.2994 -9.1457 -11.3955 -4.6512 -9.4821 -11.1227 -4.6214 -9.5618 -11.0474 -4.5866 -9.5715 -10.9750 -4.6247 -9.5608 -10.6782 -4.6430 -9.4741 -9.5328 -4.2998 -9.1453 -9.0785 -4.2780 -8.6715 -8.0485 -4.3981 -8.2152 -6.7082 -5.5481 -7.6855 -7.8111 -7.8435 -8.1847 -8.6796 -8.4325 -8.3360 -9.9175 -8.6156 -8.4910 -10.3897 -8.2153 -8.4639 -11.2712 -8.2155 -8.4639 -11.5701 -8.2823 -8.4684 -11.6073 -8.9557 -8.4527 -11.9269 -8.9640 -8.4467 -12.2560 -8.9969 -8.4229 -13.5339 -8.6234 -8.1919 -14.5228 -8.2634 -7.9854 -15.7945 -5.1717 -7.2880 -14.2361 -3.8287 -8.1139 -13.0801 -3.9757 -8.5670 -12.5771 -3.4023 -9.3208 -11.8440 -3.8678 -9.9532 -11.3695 -4.3205 -9.8694 -11.0362 -4.4701 -9.7949 -10.7164 -4.3062 -9.8765 -10.2389 -3.8571 -9.9381 -9.5279 -3.4028 -9.3204 -9.0272 -3.9762 -8.5665 -7.8714 -3.8295 -8.1131 -6.3069 -5.1730 -7.2866 -7.5728 -8.2623 -7.9852 -8.5648 -8.6222 -8.1920 -9.8446 -8.9961 -8.4230 -10.3388 -8.9472 -8.4587 -11.2878 -8.9475 -8.4586 -11.6073 -8.9557 -8.4527 -11.6501 -9.4792 -8.3946 -11.9952 -9.4894 -8.4116 -12.3582 -9.5298 -8.4798 -13.8094 -8.7578 -8.0328 -14.9991 -8.5041 -7.4886 -16.0184 -4.1680 -7.0990 -14.5141 -3.5446 -7.9691 -13.3300 -3.2493 -8.4873 -11.9088 -3.3299 -9.4786 -11.8938 -3.3122 -10.1406 -11.4481 -3.3135 -10.4998 -11.0318 -3.3153 -10.5993 -10.6332 -3.3136 -10.4900 -10.2065 -3.3130 -10.1247 -10.1961 -3.3302 -9.4784 -8.7793 -3.2499 -8.4867 -7.5943 -3.5456 -7.9683 -6.0865 -4.1697 -7.0976 -7.0966 -8.5027 -7.4885 -8.2890 -8.7564 -8.0329 -9.7414 -9.5287 -8.4801 -10.2877 -9.4686 -8.3777 -11.3050 -9.4690 -8.3776 -11.6501 -9.4792 -8.3946 -11.8707 -10.3091 -8.1867 -12.3102 -10.2410 -8.1993 -12.5476 -9.9675 -8.2500 -14.2860 -8.9569 -7.7726 -15.4467 -7.9858 -7.0059 -16.1989 -3.0285 -6.9754 -14.8646 -2.9778 -7.6712 -13.5360 -2.7742 -8.5187 -11.7357 -2.8299 -9.2699 -11.9086 -2.8178 -9.8495 -11.4709 -2.8188 -10.1543 -11.0330 -2.8200 -10.2376 -10.6136 -2.8189 -10.1461 -10.1996 -2.8184 -9.8356 -10.3722 -2.8302 -9.2697 -8.5741 -2.7749 -8.5181 -7.2460 -2.9789 -7.6703 -5.9099 -3.0302 -6.9741 -6.6502 -7.9849 -7.0055 -7.8115 -8.9551 -7.7728 -9.5531 -9.9661 -8.2504 -9.9105 -10.3764 -8.1744 -11.4312 -10.3773 -8.1741 -11.8707 -10.3091 -8.1867 -11.9751 -10.3770 -7.7866 -12.5400 -10.3081 -7.8378 -13.3704 -10.0314 -8.0429 -14.3440 -9.0799 -7.4323 -15.9211 -7.5411 -6.4816 -16.3224 -2.6222 -6.7773 -15.1119 -2.0978 -7.7311 -14.0632 -1.4525 -7.6491 -11.6049 -0.9886 -8.6732 -11.4903 -1.0976 -8.8265 -11.2539 -1.0933 -8.8204 -11.0493 -1.0845 -8.8079 -10.8529 -1.0942 -8.8215 -10.6222 -1.0952 -8.8228 -10.5112 -0.9887 -8.6731 -8.0538 -1.4532 -7.6486 -7.0003 -2.0991 -7.7302 -5.7882 -2.6239 -6.7760 -6.1767 -7.5407 -6.4809 -7.7555 -9.0779 -7.4326 -8.7288 -10.0291 -8.0435 -9.9806 -10.4452 -7.7357 -11.4101 -10.4460 -7.7354 -11.9751 -10.3770 -7.7866 -12.0730 -10.4184 -7.5381 -12.6754 -10.3542 -7.5987 -13.4174 -10.0964 -7.8413 -14.4295 -9.0750 -7.0069 -16.0651 -7.4989 -6.2942 -16.4745 -1.6221 -6.5524 -15.5363 -1.5100 -7.6004 -13.8214 -1.3976 -7.4182 -12.3745 -0.6932 -8.4252 -11.8685 -0.9139 -8.5976 -11.4033 -0.7811 -8.6261 -11.0438 -0.7140 -8.6261 -10.6988 -0.7877 -8.6260 -10.2362 -0.9089 -8.5934 -9.7430 -0.6935 -8.4250 -8.2972 -1.3982 -7.4178 -6.5769 -1.5114 -7.5994 -5.6396 -1.6237 -6.5512 -6.0328 -7.4985 -6.2935 -7.6725 -9.0729 -7.0074 -8.6830 -10.0941 -7.8420 -9.8026 -10.4816 -7.4779 -11.4705 -10.4826 -7.4776 -12.0730 -10.4184 -7.5381 -12.1274 -10.4374 -7.3332 -12.7570 -10.3716 -7.3648 -13.4999 -10.1072 -7.4913 -14.4427 -9.0602 -6.8042 -16.3154 -7.5496 -5.8965 -16.5603 -0.8174 -6.3235 -16.0214 -0.7488 -7.3505 -14.0773 -0.5457 -7.7128 -12.4676 0.5435 -8.8213 -11.8624 0.4118 -8.7568 -11.3929 0.3260 -8.7890 -11.0448 0.3004 -8.8060 -10.7111 0.3284 -8.7873 -10.2417 0.4147 -8.7582 -9.6502 0.5431 -8.8210 -8.0413 -0.5463 -7.7124 -6.0933 -0.7503 -7.3494 -5.5565 -0.8189 -6.3225 -5.7826 -7.5492 -5.8957 -7.6606 -9.0581 -6.8046 -8.6028 -10.1047 -7.4920 -9.7226 -10.5022 -7.3021 -11.4979 -10.5033 -7.3017 -12.1274 -10.4374 -7.3332 -12.1785 -10.4244 -7.1139 -12.8270 -10.3576 -7.1222 -13.5199 -10.0891 -7.1559 -14.4702 -9.0868 -6.5777 -16.4676 -7.4580 -5.6456 -16.7230 -0.6472 -5.9103 -16.4438 1.4278 -7.3677 -14.9219 1.0252 -7.7020 -12.6499 1.6446 -8.7568 -12.0965 1.2955 -8.8380 -11.5085 1.4412 -8.8332 -11.0408 1.5218 -8.8260 -10.5920 1.4333 -8.8339 -10.0097 1.3035 -8.8360 -9.4697 1.6442 -8.7566 -7.1978 1.0243 -7.7015 -5.6740 1.4263 -7.3667 -5.3952 -0.6486 -5.9093 -5.6307 -7.4578 -5.6447 -7.6345 -9.0846 -6.5782 -8.5853 -10.0866 -7.1567 -9.6287 -10.4902 -7.1060 -11.5300 -10.4913 -7.1056 -12.1785 -10.4244 -7.1139 -12.1971 -10.4333 -6.7686 -12.8596 -10.3713 -6.7769 -13.5951 -10.1223 -6.8105 -14.5049 -9.0613 -6.2809 -16.6282 -7.5008 -5.2973 -16.9186 -0.0995 -5.5469 -16.6968 2.7218 -6.6630 -15.6381 2.2935 -7.3765 -13.1618 2.9928 -8.2005 -12.4111 3.3870 -8.1033 -11.6428 3.1039 -8.3600 -11.0364 2.9657 -8.4682 -10.4552 3.1171 -8.3494 -9.6946 3.3776 -8.1055 -8.9605 2.9924 -8.2003 -6.4828 2.2926 -7.3759 -5.4241 2.7206 -6.6622 -5.2012 -0.1009 -5.5460 -5.4705 -7.5006 -5.2964 -7.6017 -9.0591 -6.2814 -8.5121 -10.1197 -6.8113 -9.6198 -10.4942 -6.7607 -11.5345 -10.4953 -6.7603 -12.1971 -10.4333 -6.7686 -12.1952 -10.4132 -6.2411 -12.8708 -10.3476 -6.2517 -13.7261 -10.0845 -6.2941 -14.5375 -9.0601 -6.0380 -16.7921 -7.5280 -4.8135 -17.2088 0.5789 -5.0618 -17.0402 3.4954 -5.0082 -15.7686 4.3832 -6.2667 -13.8196 4.9297 -6.7465 -12.6884 5.6870 -6.6340 -11.7459 5.9043 -6.6385 -11.0341 5.9413 -6.6476 -10.3514 5.9007 -6.6376 -9.4112 5.6691 -6.6366 -8.3060 4.9294 -6.7463 -6.3557 4.3825 -6.2663 -5.0842 3.4946 -5.0076 -4.9125 0.5777 -5.0609 -5.3074 -7.5278 -4.8126 -7.5705 -9.0579 -6.0386 -8.3840 -10.0820 -6.2950 -9.6722 -10.4778 -6.2310 -11.5195 -10.4787 -6.2306 -12.1952 -10.4132 -6.2411 -12.1964 -10.4141 -5.5570 -12.8872 -10.3471 -5.5537 -13.8665 -10.0784 -5.5409 -14.5517 -9.0468 -5.6155 -16.8882 -7.6099 -4.7480 -17.3519 1.4013 -2.9604 -17.2800 3.7621 -3.8426 -15.3929 5.5397 -3.4755 -15.0941 6.0754 -4.4240 -12.5955 7.0764 -3.7975 -11.5962 7.0577 -4.0457 -11.0417 6.9851 -4.1850 -10.5099 7.0647 -4.0322 -9.4744 7.0528 -3.8121 -7.0333 6.0751 -4.4238 -6.7353 5.5394 -3.4753 -4.8457 3.7613 -3.8421 -4.7738 1.4005 -2.9599 -5.2104 -7.6097 -4.7470 -7.5589 -9.0447 -5.6161 -8.2477 -10.0760 -5.5417 -9.7220 -10.4803 -5.5605 -11.5057 -10.4811 -5.5602 -12.1964 -10.4141 -5.5570 -12.2022 -10.5011 -5.1846 -12.8945 -10.4346 -5.1204 -13.8657 -10.1682 -4.8637 -14.5959 -9.0339 -5.1626 -16.8440 -7.6897 -4.1612 -17.5753 1.4839 -2.1512 -16.5025 3.7693 -1.3418 -15.6024 5.6542 -0.6076 -15.0396 6.0579 -0.7828 -12.6002 7.4644 -0.6486 -11.6032 7.5852 -0.6540 -11.0419 7.5416 -0.6649 -10.5035 7.5894 -0.6529 -9.4721 7.4313 -0.6518 -7.0898 6.0578 -0.7827 -6.5269 5.6540 -0.6075 -5.6263 3.7691 -1.3416 -4.5507 1.4832 -2.1507 -5.2578 -7.6892 -4.1605 -7.5171 -9.0320 -5.1632 -8.2524 -10.1661 -4.8645 -9.7123 -10.5668 -5.2491 -11.5100 -10.5675 -5.2488 -12.2022 -10.5011 -5.1846 -12.1554 -10.6541 -4.8816 -12.8228 -10.6299 -4.7893 -13.7853 -10.5323 -4.4205 -14.5941 -9.1434 -4.8518 -16.8658 -7.7204 -3.5573 -17.2249 0.8681 -0.5763 -17.1903 3.5627 0.2760 -15.4181 4.7291 2.3249 -15.0888 5.2702 2.5954 -12.5967 6.3641 2.4240 -11.5976 6.2385 2.4308 -11.0424 6.1175 2.4447 -10.5098 6.2502 2.4295 -9.4747 6.3383 2.4280 -7.0406 5.2701 2.5955 -6.7113 4.7289 2.3250 -4.9379 3.5623 0.2762 -4.9023 0.8676 -0.5759 -5.2385 -7.7198 -3.5568 -7.5206 -9.1414 -4.8524 -8.3353 -10.5303 -4.4213 -9.7811 -10.6778 -4.9741 -11.4880 -10.6784 -4.9739 -12.1554 -10.6541 -4.8816 -12.1060 -10.9330 -4.6566 -12.7567 -10.9282 -4.5755 -13.7861 -10.9082 -4.2514 -14.5248 -9.3676 -4.6029 -16.7072 -7.9939 -3.0695 -17.0226 -0.9850 0.5426 -16.9565 2.9546 1.8872 -16.1912 2.5166 4.5379 -15.5456 3.4371 5.0361 -13.2758 3.5056 5.3825 -11.9367 3.9793 5.3686 -11.0276 4.1629 5.3406 -10.1555 3.9615 5.3714 -8.7999 3.5039 5.3744 -6.5822 3.4367 5.0364 -5.9363 2.5161 4.5382 -5.1717 2.9542 1.8874 -5.1036 -0.9856 0.5430 -5.4001 -7.9928 -3.0692 -7.5915 -9.3656 -4.6035 -8.3352 -10.9060 -4.2523 -9.8819 -10.9373 -4.7379 -11.4553 -10.9379 -4.7377 -12.1060 -10.9330 -4.6566 -12.0732 -11.1528 -4.5757 -12.7135 -11.1481 -4.5052 -13.7918 -11.1287 -4.2236 -14.5627 -9.8955 -4.4443 -16.6615 -8.0917 -2.9090 -16.6587 -3.0363 0.6342 -16.8846 1.8437 3.1275 -16.6978 0.7696 4.9108 -13.6273 0.3333 5.7719 -12.7315 0.6974 6.1051 -11.7850 0.2351 6.2334 -11.0332 0.0278 6.2627 -10.3122 0.2551 6.2306 -9.3754 0.6887 6.0973 -8.5005 0.3331 5.7721 -5.4274 0.7686 4.9113 -5.2428 1.8431 3.1278 -5.4661 -3.0369 0.6346 -5.4466 -8.0905 -2.9088 -7.5537 -9.8930 -4.4451 -8.3295 -11.1263 -4.2246 -9.9501 -11.1570 -4.6463 -11.4329 -11.1575 -4.6461 -12.0732 -11.1528 -4.5757 -12.0351 -11.3996 -4.4765 -12.6585 -11.4059 -4.4162 -13.7547 -11.4304 -4.1756 -14.6064 -10.1352 -4.3637 -16.5974 -8.6171 -2.9881 -16.3120 -4.9811 0.8818 -16.8553 -2.2190 2.4587 -15.7416 -1.2005 4.9483 -13.8543 -2.2669 5.2052 -12.4460 -2.3691 5.9513 -11.6095 -2.1277 6.1529 -11.0401 -2.0251 6.1844 -10.4938 -2.1376 6.1499 -9.6474 -2.3668 5.9339 -8.2724 -2.2672 5.2054 -6.3836 -1.2012 4.9488 -5.2690 -2.2199 2.4592 -5.8115 -4.9814 0.8822 -5.5094 -8.6153 -2.9883 -7.5100 -10.1324 -4.3647 -8.3669 -11.4279 -4.1766 -10.0146 -11.3928 -4.5369 -11.4118 -11.3933 -4.5367 -12.0351 -11.3996 -4.4765 -12.1051 -11.5751 -4.4670 -12.7427 -11.5859 -4.4168 -13.6718 -11.6281 -4.2160 -14.7164 -10.6749 -4.1591 -16.3313 -9.2758 -3.4638 -16.3977 -5.9130 0.6407 -16.3480 -5.0769 1.0773 -15.8217 -2.5700 4.1197 -13.4344 -5.2508 4.3582 -12.2289 -5.2278 4.6354 -11.5226 -5.2287 4.6242 -11.0444 -5.2305 4.6017 -10.5856 -5.2285 4.6264 -9.8703 -5.2284 4.6289 -8.6924 -5.2509 4.3582 -6.3031 -2.5706 4.1201 -5.7752 -5.0773 1.0777 -5.7242 -5.9132 0.6410 -5.7744 -9.2729 -3.4644 -7.3996 -10.6714 -4.1604 -8.4499 -11.6255 -4.2171 -9.8467 -11.5638 -4.5175 -11.4676 -11.5644 -4.5173 -12.1051 -11.5751 -4.4670 -12.1066 -11.8205 -4.4340 -12.7431 -11.8201 -4.3941 -13.6580 -11.8182 -4.2345 -14.7716 -11.1754 -4.1132 -16.1658 -10.0111 -3.3628 -16.4367 -6.3544 0.0620 -16.3342 -7.1869 0.7602 -15.8248 -3.6435 3.4027 -13.4324 -6.4688 3.4082 -12.2361 -6.2574 3.5520 -11.5271 -6.5955 3.5462 -11.0449 -6.7436 3.5346 -10.5824 -6.5812 3.5474 -9.8647 -6.2624 3.5487 -8.6957 -6.4687 3.4083 -6.2998 -3.6440 3.4031 -5.7860 -7.1866 0.7603 -5.6841 -6.3545 0.0623 -5.9401 -10.0069 -3.3640 -7.3436 -11.1711 -4.1149 -8.4637 -11.8155 -4.2357 -9.8393 -11.8201 -4.4743 -11.4702 -11.8208 -4.4740 -12.1066 -11.8205 -4.4340 -12.1144 -12.0745 -4.4602 -12.7513 -12.0932 -4.4102 -13.6375 -12.1671 -4.2107 -14.8761 -11.5438 -4.2174 -16.0284 -10.7719 -2.7507 -16.2833 -8.3526 -0.8624 -16.3741 -8.1695 0.5461 -15.8057 -7.0390 1.9889 -13.4586 -8.2137 3.5256 -12.1629 -8.3527 3.2670 -11.4847 -8.3469 3.2773 -11.0468 -8.3356 3.2982 -10.6269 -8.3480 3.2752 -9.9358 -8.3493 3.2730 -8.6689 -8.2134 3.5255 -6.3172 -7.0387 1.9889 -5.7440 -8.1684 0.5460 -5.8340 -8.3513 -0.8626 -6.0797 -10.7663 -2.7527 -7.2369 -11.5384 -4.2196 -8.4841 -12.1640 -4.2120 -9.8166 -12.0551 -4.5105 -11.4776 -12.0559 -4.5101 -12.1144 -12.0745 -4.4602 -12.1032 -12.3162 -4.4667 -12.7359 -12.3394 -4.4177 -13.6349 -12.4314 -4.2221 -14.8416 -11.9554 -4.2901 -16.0250 -11.5554 -2.5280 -16.2599 -10.0355 -0.5854 -16.3748 -10.4023 0.7665 -15.7993 -9.1232 2.5708 -13.4665 -10.3377 4.0146 -12.1382 -10.5782 3.8834 -11.4704 -10.5682 3.8885 -11.0472 -10.5486 3.8990 -10.6414 -10.5700 3.8874 -9.9594 -10.5722 3.8863 -8.6606 -10.3365 4.0141 -6.3209 -9.1214 2.5702 -5.7384 -10.3979 0.7648 -5.8542 -10.0319 -0.5866 -6.0808 -11.5474 -2.5312 -7.2706 -11.9491 -4.2927 -8.4875 -12.4283 -4.2235 -9.8382 -12.2923 -4.5160 -11.4704 -12.2931 -4.5157 -12.1032 -12.3162 -4.4667 -12.1093 -12.7048 -4.6697 -12.7327 -12.7124 -4.6365 -13.5318 -12.7420 -4.5042 -15.2397 -12.5001 -4.1466 -16.2359 -12.5979 -2.0875 -16.7586 -12.4391 -0.2510 -16.2385 -12.7907 1.6013 -15.8320 -12.1995 2.7774 -13.4566 -12.3041 5.0461 -12.1390 -12.7705 4.8987 -11.4716 -12.7511 4.9043 -11.0473 -12.7128 4.9160 -10.6403 -12.7543 4.9029 -9.9590 -12.7583 4.9016 -8.6705 -12.3009 5.0445 -6.2850 -12.1901 2.7732 -5.8756 -12.7795 1.5963 -5.3444 -12.4277 -0.2556 -5.8681 -12.5863 -2.0923 -6.8699 -12.4918 -4.1501 -8.5898 -12.7385 -4.5057 -9.7913 -12.6962 -4.7033 -11.4859 -12.6971 -4.7029 -12.1093 -12.7048 -4.6697 -11.7578 -6.7464 -6.3137 -12.1236 -6.7185 -6.3208 -12.2527 -6.6067 -6.3488 -12.9135 -6.5388 -6.1805 -13.2555 -6.5671 -6.2433 -13.3467 -6.0869 -6.2392 -13.0345 -6.1151 -6.2725 -12.6849 -6.0054 -6.3250 -12.4115 -6.0347 -6.3110 -11.8663 -6.0277 -6.3143 -11.3996 -6.0279 -6.3142 -11.0448 -6.0284 -6.3139 -10.7044 -6.0278 -6.3142 -10.2390 -6.0278 -6.3142 -9.7061 -6.0346 -6.3109 -9.4321 -6.0053 -6.3249 -9.0820 -6.1149 -6.2724 -8.7692 -6.0867 -6.2390 -8.8599 -6.5668 -6.2433 -9.2032 -6.5386 -6.1805 -9.8642 -6.6066 -6.3488 -10.0582 -6.7742 -6.3067 -11.3921 -6.7743 -6.3067 -11.7578 -6.7464 -6.3137 -11.6030 -7.9766 -6.1488 -11.9363 -7.9616 -6.1558 -12.4259 -7.9017 -6.1838 -13.2492 -8.2633 -6.0153 -14.0886 -7.6470 -6.0782 -15.0765 -5.7190 -6.0746 -13.8819 -4.4841 -6.1083 -13.3069 -4.6315 -6.1608 -11.3438 -4.5916 -6.1468 -11.9470 -4.6009 -6.1501 -11.5278 -4.6005 -6.1500 -11.0407 -4.5997 -6.1497 -10.5734 -4.6006 -6.1499 -10.1880 -4.6007 -6.1499 -10.7773 -4.5916 -6.1468 -8.8119 -4.6316 -6.1606 -8.2360 -4.4843 -6.1081 -7.0343 -5.7192 -6.0740 -8.0234 -7.6462 -6.0783 -8.8659 -8.2624 -6.0155 -9.6905 -7.9012 -6.1839 -10.4261 -7.9914 -6.1419 -11.2697 -7.9915 -6.1419 -11.6030 -7.9766 -6.1488 -11.6080 -7.8431 -7.9041 -11.9028 -7.8274 -7.9111 -12.0410 -7.7644 -7.9391 -13.2615 -8.1429 -7.7706 -13.9667 -7.5727 -7.8337 -14.9137 -5.8044 -7.8305 -13.8868 -4.6161 -7.8642 -13.0560 -4.7729 -7.9165 -12.3076 -4.7307 -7.9025 -11.8700 -4.7405 -7.9057 -11.4079 -4.7401 -7.9056 -11.0408 -4.7393 -7.9053 -10.6886 -4.7402 -7.9056 -10.2308 -4.7404 -7.9055 -9.8031 -4.7308 -7.9023 -9.0533 -4.7731 -7.9162 -8.2211 -4.6166 -7.8636 -7.1868 -5.8050 -7.8296 -8.1341 -7.5721 -7.8336 -8.8419 -8.1421 -7.7707 -10.0646 -7.7641 -7.9391 -10.2724 -7.8585 -7.8971 -11.3133 -7.8587 -7.8971 -11.6080 -7.8431 -7.9041 -11.7411 -6.5034 -8.3343 -12.1120 -6.4742 -8.3414 -12.3235 -6.3574 -8.3696 -12.7601 -6.3194 -8.2009 -13.0094 -6.4316 -8.2655 -13.0988 -6.2393 -8.2545 -12.9193 -6.3550 -8.3128 -12.7061 -6.2490 -8.2718 -12.3951 -6.3225 -8.6066 -11.8592 -6.1624 -8.5282 -11.3932 -6.1688 -8.5314 -11.0376 -6.1818 -8.5377 -10.6966 -6.1675 -8.5307 -10.2322 -6.1662 -8.5300 -9.7073 -6.3225 -8.6064 -9.3982 -6.2490 -8.2716 -9.1840 -6.3550 -8.3126 -9.0047 -6.2393 -8.2542 -9.0939 -6.4315 -8.2652 -9.3445 -6.3194 -8.2007 -9.7806 -6.3573 -8.3694 -10.0983 -6.5325 -8.3272 -11.3703 -6.5325 -8.3273 -11.7411 -6.5034 -8.3343 -11.7252 -6.6688 -8.9651 -12.0870 -6.6401 -8.9914 -12.2801 -6.5253 -9.0965 -12.8529 -6.4751 -8.4661 -13.1680 -6.4987 -8.4925 -13.2565 -6.2361 -8.7108 -12.9884 -6.1741 -8.9398 -12.6839 -6.0900 -9.0936 -12.3981 -6.1574 -9.1862 -11.8566 -5.9987 -9.1646 -11.3904 -6.0051 -9.1654 -11.0356 -6.0180 -9.1671 -10.6952 -6.0039 -9.1651 -10.2305 -6.0025 -9.1649 -9.7004 -6.1575 -9.1859 -9.4150 -6.0902 -9.0933 -9.1107 -6.1743 -8.9394 -8.8433 -6.2362 -8.7104 -8.9331 -6.4987 -8.4922 -9.2492 -6.4751 -8.4659 -9.8185 -6.5253 -9.0963 -10.1094 -6.6974 -8.9387 -11.3634 -6.6975 -8.9388 -11.7252 -6.6688 -8.9651 -11.7052 -6.9152 -8.9148 -12.0527 -6.8878 -8.9765 -12.2119 -6.7783 -9.2234 -13.0192 -6.6980 -8.6275 -13.3102 -6.6375 -8.4724 -13.5219 -6.0859 -8.7726 -13.0882 -5.9402 -9.1005 -12.6560 -5.8397 -9.4460 -12.4046 -5.9114 -9.4397 -11.8553 -5.7518 -9.4412 -11.3888 -5.7582 -9.4411 -11.0349 -5.7711 -9.4409 -10.6954 -5.7570 -9.4410 -10.2301 -5.7557 -9.4409 -9.6926 -5.9116 -9.4393 -9.4409 -5.8400 -9.4456 -9.0100 -5.9404 -9.1000 -8.5770 -6.0861 -8.7720 -8.7904 -6.6374 -8.4720 -9.0809 -6.6979 -8.6272 -9.8854 -6.7783 -9.2232 -10.1270 -6.9425 -8.8530 -11.3577 -6.9425 -8.8530 -11.7052 -6.9152 -8.9148 -11.6502 -7.2713 -8.6786 -11.9655 -7.2442 -8.6874 -12.0888 -7.1353 -8.7225 -13.2240 -7.3040 -8.6894 -13.6243 -6.8649 -8.4265 -13.9721 -5.6859 -8.6914 -13.2974 -5.7401 -8.8112 -12.6597 -5.3683 -9.2812 -12.1895 -5.3573 -9.3395 -11.8717 -5.4363 -9.4519 -11.4149 -5.4332 -9.4473 -11.0342 -5.4268 -9.4381 -10.6690 -5.4338 -9.4481 -10.2199 -5.4346 -9.4490 -9.9102 -5.3575 -9.3392 -9.4397 -5.3687 -9.2808 -8.8028 -5.7405 -8.8107 -8.1270 -5.6864 -8.6907 -8.4751 -6.8648 -8.4261 -8.8739 -7.3038 -8.6892 -10.0118 -7.1352 -8.7224 -10.1972 -7.2984 -8.6698 -11.3349 -7.2985 -8.6699 -11.6502 -7.2713 -8.6786 -11.6067 -7.5584 -8.5898 -11.8991 -7.5984 -8.5615 -12.0140 -7.7580 -8.4484 -13.3542 -7.6863 -8.5690 -13.8224 -7.2778 -8.3965 -14.4606 -5.6560 -8.4649 -13.5315 -5.3637 -8.5927 -12.8937 -4.8990 -8.8226 -12.1626 -5.2998 -9.2282 -11.8748 -5.0172 -9.3425 -11.4191 -5.0285 -9.3353 -11.0350 -5.0515 -9.3249 -10.6664 -5.0264 -9.3362 -10.2193 -5.0240 -9.3396 -9.9381 -5.3001 -9.2279 -9.2097 -4.8994 -8.8221 -8.5705 -5.3641 -8.5922 -7.6382 -5.6567 -8.4640 -8.2756 -7.2775 -8.3961 -8.7436 -7.6858 -8.5688 -10.0879 -7.7577 -8.4484 -10.2595 -7.5184 -8.6181 -11.3143 -7.5185 -8.6181 -11.6067 -7.5584 -8.5898 -11.5903 -8.0358 -8.4426 -11.8895 -8.0546 -8.4297 -12.1261 -8.1296 -8.3779 -13.3419 -8.1023 -8.4911 -14.0591 -7.6287 -8.3228 -15.0008 -5.5996 -8.0218 -13.8058 -4.8398 -8.4008 -13.2667 -4.6826 -8.7134 -11.5262 -4.7356 -9.2539 -11.9241 -4.4749 -8.9891 -11.4953 -4.6412 -9.3098 -11.0317 -4.7243 -9.4544 -10.5883 -4.6333 -9.2957 -10.1900 -4.4812 -8.9951 -10.5763 -4.7357 -9.2538 -8.8372 -4.6831 -8.7128 -8.2982 -4.8404 -8.4001 -7.0987 -5.6005 -8.0207 -8.0377 -7.6282 -8.3225 -8.7558 -8.1016 -8.4910 -9.9758 -8.1291 -8.3779 -10.3306 -8.0169 -8.4556 -11.2910 -8.0170 -8.4556 -11.5903 -8.0358 -8.4426 -11.5701 -8.2823 -8.4684 -11.8689 -8.3492 -8.4729 -12.1829 -8.6162 -8.4909 -13.4186 -8.4335 -8.3360 -14.2852 -7.8442 -8.1850 -15.3916 -5.5471 -7.6866 -14.0573 -4.3973 -8.2159 -13.0274 -4.2775 -8.6720 -12.5707 -4.2994 -9.1457 -11.3955 -4.6512 -9.4821 -11.1227 -4.6214 -9.5618 -11.0474 -4.5866 -9.5715 -10.9750 -4.6247 -9.5608 -10.6782 -4.6430 -9.4741 -9.5328 -4.2998 -9.1453 -9.0785 -4.2780 -8.6715 -8.0485 -4.3981 -8.2152 -6.7082 -5.5481 -7.6855 -7.8111 -7.8435 -8.1847 -8.6796 -8.4325 -8.3360 -9.9175 -8.6156 -8.4910 -10.3897 -8.2153 -8.4639 -11.2712 -8.2155 -8.4639 -11.5701 -8.2823 -8.4684 -11.6073 -8.9557 -8.4527 -11.9269 -8.9640 -8.4467 -12.2560 -8.9969 -8.4229 -13.5339 -8.6234 -8.1919 -14.5228 -8.2634 -7.9854 -15.7945 -5.1717 -7.2880 -14.2361 -3.8287 -8.1139 -13.0801 -3.9757 -8.5670 -12.5771 -3.4023 -9.3208 -11.8440 -3.8678 -9.9532 -11.3695 -4.3205 -9.8694 -11.0362 -4.4701 -9.7949 -10.7164 -4.3062 -9.8765 -10.2389 -3.8571 -9.9381 -9.5279 -3.4028 -9.3204 -9.0272 -3.9762 -8.5665 -7.8714 -3.8295 -8.1131 -6.3069 -5.1730 -7.2866 -7.5728 -8.2623 -7.9852 -8.5648 -8.6222 -8.1920 -9.8446 -8.9961 -8.4230 -10.3388 -8.9472 -8.4587 -11.2878 -8.9475 -8.4586 -11.6073 -8.9557 -8.4527 -11.6501 -9.4792 -8.3946 -11.9952 -9.4894 -8.4116 -12.3582 -9.5298 -8.4798 -13.8094 -8.7578 -8.0328 -14.9991 -8.5041 -7.4886 -16.0184 -4.1680 -7.0990 -14.5141 -3.5446 -7.9691 -13.3300 -3.2493 -8.4873 -11.9088 -3.3299 -9.4786 -11.8938 -3.3122 -10.1406 -11.4481 -3.3135 -10.4998 -11.0318 -3.3153 -10.5993 -10.6332 -3.3136 -10.4900 -10.2065 -3.3130 -10.1247 -10.1961 -3.3302 -9.4784 -8.7793 -3.2499 -8.4867 -7.5943 -3.5456 -7.9683 -6.0865 -4.1697 -7.0976 -7.0966 -8.5027 -7.4885 -8.2890 -8.7564 -8.0329 -9.7414 -9.5287 -8.4801 -10.2877 -9.4686 -8.3777 -11.3050 -9.4690 -8.3776 -11.6501 -9.4792 -8.3946 -11.8707 -10.3091 -8.1867 -12.3102 -10.2410 -8.1993 -12.5476 -9.9675 -8.2500 -14.2860 -8.9569 -7.7726 -15.4467 -7.9858 -7.0059 -16.1989 -3.0285 -6.9754 -14.8646 -2.9778 -7.6712 -13.5360 -2.7742 -8.5187 -11.7357 -2.8299 -9.2699 -11.9086 -2.8178 -9.8495 -11.4709 -2.8188 -10.1543 -11.0330 -2.8200 -10.2376 -10.6136 -2.8189 -10.1461 -10.1996 -2.8184 -9.8356 -10.3722 -2.8302 -9.2697 -8.5741 -2.7749 -8.5181 -7.2460 -2.9789 -7.6703 -5.9099 -3.0302 -6.9741 -6.6502 -7.9849 -7.0055 -7.8115 -8.9551 -7.7728 -9.5531 -9.9661 -8.2504 -9.9105 -10.3764 -8.1744 -11.4312 -10.3773 -8.1741 -11.8707 -10.3091 -8.1867 -11.9751 -10.3770 -7.7866 -12.5400 -10.3081 -7.8378 -13.3704 -10.0314 -8.0429 -14.3440 -9.0799 -7.4323 -15.9211 -7.5411 -6.4816 -16.3224 -2.6222 -6.7773 -15.1119 -2.0978 -7.7311 -14.0632 -1.4525 -7.6491 -11.6049 -0.9886 -8.6732 -11.4903 -1.0976 -8.8265 -11.2539 -1.0933 -8.8204 -11.0493 -1.0845 -8.8079 -10.8529 -1.0942 -8.8215 -10.6222 -1.0952 -8.8228 -10.5112 -0.9887 -8.6731 -8.0538 -1.4532 -7.6486 -7.0003 -2.0991 -7.7302 -5.7882 -2.6239 -6.7760 -6.1767 -7.5407 -6.4809 -7.7555 -9.0779 -7.4326 -8.7288 -10.0291 -8.0435 -9.9806 -10.4452 -7.7357 -11.4101 -10.4460 -7.7354 -11.9751 -10.3770 -7.7866 -12.0730 -10.4184 -7.5381 -12.6754 -10.3542 -7.5987 -13.4174 -10.0964 -7.8413 -14.4295 -9.0750 -7.0069 -16.0651 -7.4989 -6.2942 -16.4745 -1.6221 -6.5524 -15.5363 -1.5100 -7.6004 -13.8214 -1.3976 -7.4182 -12.3745 -0.6932 -8.4252 -11.8685 -0.9139 -8.5976 -11.4033 -0.7811 -8.6261 -11.0438 -0.7140 -8.6261 -10.6988 -0.7877 -8.6260 -10.2362 -0.9089 -8.5934 -9.7430 -0.6935 -8.4250 -8.2972 -1.3982 -7.4178 -6.5769 -1.5114 -7.5994 -5.6396 -1.6237 -6.5512 -6.0328 -7.4985 -6.2935 -7.6725 -9.0729 -7.0074 -8.6830 -10.0941 -7.8420 -9.8026 -10.4816 -7.4779 -11.4705 -10.4826 -7.4776 -12.0730 -10.4184 -7.5381 -12.1274 -10.4374 -7.3332 -12.7570 -10.3716 -7.3648 -13.4999 -10.1072 -7.4913 -14.4427 -9.0602 -6.8042 -16.3154 -7.5496 -5.8965 -16.5603 -0.8174 -6.3235 -16.0214 -0.7488 -7.3505 -14.0773 -0.5457 -7.7128 -12.4676 0.5435 -8.8213 -11.8624 0.4118 -8.7568 -11.3929 0.3260 -8.7890 -11.0448 0.3004 -8.8060 -10.7111 0.3284 -8.7873 -10.2417 0.4147 -8.7582 -9.6502 0.5431 -8.8210 -8.0413 -0.5463 -7.7124 -6.0933 -0.7503 -7.3494 -5.5565 -0.8189 -6.3225 -5.7826 -7.5492 -5.8957 -7.6606 -9.0581 -6.8046 -8.6028 -10.1047 -7.4920 -9.7226 -10.5022 -7.3021 -11.4979 -10.5033 -7.3017 -12.1274 -10.4374 -7.3332 -12.1785 -10.4244 -7.1139 -12.8270 -10.3576 -7.1222 -13.5199 -10.0891 -7.1559 -14.4702 -9.0868 -6.5777 -16.4676 -7.4580 -5.6456 -16.7230 -0.6472 -5.9103 -16.4438 1.4278 -7.3677 -14.9219 1.0252 -7.7020 -12.6499 1.6446 -8.7568 -12.0965 1.2955 -8.8380 -11.5085 1.4412 -8.8332 -11.0408 1.5218 -8.8260 -10.5920 1.4333 -8.8339 -10.0097 1.3035 -8.8360 -9.4697 1.6442 -8.7566 -7.1978 1.0243 -7.7015 -5.6740 1.4263 -7.3667 -5.3952 -0.6486 -5.9093 -5.6307 -7.4578 -5.6447 -7.6345 -9.0846 -6.5782 -8.5853 -10.0866 -7.1567 -9.6287 -10.4902 -7.1060 -11.5300 -10.4913 -7.1056 -12.1785 -10.4244 -7.1139 -12.1971 -10.4333 -6.7686 -12.8596 -10.3713 -6.7769 -13.5951 -10.1223 -6.8105 -14.5049 -9.0613 -6.2809 -16.6282 -7.5008 -5.2973 -16.9186 -0.0995 -5.5469 -16.6968 2.7218 -6.6630 -15.6381 2.2935 -7.3765 -13.1618 2.9928 -8.2005 -12.4111 3.3870 -8.1033 -11.6428 3.1039 -8.3600 -11.0364 2.9657 -8.4682 -10.4552 3.1171 -8.3494 -9.6946 3.3776 -8.1055 -8.9605 2.9924 -8.2003 -6.4828 2.2926 -7.3759 -5.4241 2.7206 -6.6622 -5.2012 -0.1009 -5.5460 -5.4705 -7.5006 -5.2964 -7.6017 -9.0591 -6.2814 -8.5121 -10.1197 -6.8113 -9.6198 -10.4942 -6.7607 -11.5345 -10.4953 -6.7603 -12.1971 -10.4333 -6.7686 -12.1952 -10.4132 -6.2411 -12.8708 -10.3476 -6.2517 -13.7261 -10.0845 -6.2941 -14.5375 -9.0601 -6.0380 -16.7921 -7.5280 -4.8135 -17.2088 0.5789 -5.0618 -17.0402 3.4954 -5.0082 -15.7686 4.3832 -6.2667 -13.8196 4.9297 -6.7465 -12.6884 5.6870 -6.6340 -11.7459 5.9043 -6.6385 -11.0341 5.9413 -6.6476 -10.3514 5.9007 -6.6376 -9.4112 5.6691 -6.6366 -8.3060 4.9294 -6.7463 -6.3557 4.3825 -6.2663 -5.0842 3.4946 -5.0076 -4.9125 0.5777 -5.0609 -5.3074 -7.5278 -4.8126 -7.5705 -9.0579 -6.0386 -8.3840 -10.0820 -6.2950 -9.6722 -10.4778 -6.2310 -11.5195 -10.4787 -6.2306 -12.1952 -10.4132 -6.2411 -12.1964 -10.4141 -5.5570 -12.8872 -10.3471 -5.5537 -13.8665 -10.0784 -5.5409 -14.5517 -9.0468 -5.6155 -16.8882 -7.6099 -4.7480 -17.3519 1.4013 -2.9604 -17.2800 3.7621 -3.8426 -15.3929 5.5397 -3.4755 -15.0941 6.0754 -4.4240 -12.5955 7.0764 -3.7975 -11.5962 7.0577 -4.0457 -11.0417 6.9851 -4.1850 -10.5099 7.0647 -4.0322 -9.4744 7.0528 -3.8121 -7.0333 6.0751 -4.4238 -6.7353 5.5394 -3.4753 -4.8457 3.7613 -3.8421 -4.7738 1.4005 -2.9599 -5.2104 -7.6097 -4.7470 -7.5589 -9.0447 -5.6161 -8.2477 -10.0760 -5.5417 -9.7220 -10.4803 -5.5605 -11.5057 -10.4811 -5.5602 -12.1964 -10.4141 -5.5570 -12.2022 -10.5011 -5.1846 -12.8945 -10.4346 -5.1204 -13.8657 -10.1682 -4.8637 -14.5959 -9.0339 -5.1626 -16.8440 -7.6897 -4.1612 -17.5753 1.4839 -2.1512 -16.5025 3.7693 -1.3418 -15.6024 5.6542 -0.6076 -15.0396 6.0579 -0.7828 -12.6002 7.4644 -0.6486 -11.6032 7.5852 -0.6540 -11.0419 7.5416 -0.6649 -10.5035 7.5894 -0.6529 -9.4721 7.4313 -0.6518 -7.0898 6.0578 -0.7827 -6.5269 5.6540 -0.6075 -5.6263 3.7691 -1.3416 -4.5507 1.4832 -2.1507 -5.2578 -7.6892 -4.1605 -7.5171 -9.0320 -5.1632 -8.2524 -10.1661 -4.8645 -9.7123 -10.5668 -5.2491 -11.5100 -10.5675 -5.2488 -12.2022 -10.5011 -5.1846 -12.1554 -10.6541 -4.8816 -12.8228 -10.6299 -4.7893 -13.7853 -10.5323 -4.4205 -14.5941 -9.1434 -4.8518 -16.8658 -7.7204 -3.5573 -17.2249 0.8681 -0.5763 -17.1903 3.5627 0.2760 -15.4181 4.7291 2.3249 -15.0888 5.2702 2.5954 -12.5967 6.3641 2.4240 -11.5976 6.2385 2.4308 -11.0424 6.1175 2.4447 -10.5098 6.2502 2.4295 -9.4747 6.3383 2.4280 -7.0406 5.2701 2.5955 -6.7113 4.7289 2.3250 -4.9379 3.5623 0.2762 -4.9023 0.8676 -0.5759 -5.2385 -7.7198 -3.5568 -7.5206 -9.1414 -4.8524 -8.3353 -10.5303 -4.4213 -9.7811 -10.6778 -4.9741 -11.4880 -10.6784 -4.9739 -12.1554 -10.6541 -4.8816 -12.1060 -10.9330 -4.6566 -12.7567 -10.9282 -4.5755 -13.7861 -10.9082 -4.2514 -14.5248 -9.3676 -4.6029 -16.7072 -7.9939 -3.0695 -17.0226 -0.9850 0.5426 -16.9565 2.9546 1.8872 -16.1912 2.5166 4.5379 -15.5456 3.4371 5.0361 -13.2758 3.5056 5.3825 -11.9367 3.9793 5.3686 -11.0276 4.1629 5.3406 -10.1555 3.9615 5.3714 -8.7999 3.5039 5.3744 -6.5822 3.4367 5.0364 -5.9363 2.5161 4.5382 -5.1717 2.9542 1.8874 -5.1036 -0.9856 0.5430 -5.4001 -7.9928 -3.0692 -7.5915 -9.3656 -4.6035 -8.3352 -10.9060 -4.2523 -9.8819 -10.9373 -4.7379 -11.4553 -10.9379 -4.7377 -12.1060 -10.9330 -4.6566 -12.0732 -11.1528 -4.5757 -12.7135 -11.1481 -4.5052 -13.7918 -11.1287 -4.2236 -14.5627 -9.8955 -4.4443 -16.6615 -8.0917 -2.9090 -16.6587 -3.0363 0.6342 -16.8846 1.8437 3.1275 -16.6978 0.7696 4.9108 -13.6273 0.3333 5.7719 -12.7315 0.6974 6.1051 -11.7850 0.2351 6.2334 -11.0332 0.0278 6.2627 -10.3122 0.2551 6.2306 -9.3754 0.6887 6.0973 -8.5005 0.3331 5.7721 -5.4274 0.7686 4.9113 -5.2428 1.8431 3.1278 -5.4661 -3.0369 0.6346 -5.4466 -8.0905 -2.9088 -7.5537 -9.8930 -4.4451 -8.3295 -11.1263 -4.2246 -9.9501 -11.1570 -4.6463 -11.4329 -11.1575 -4.6461 -12.0732 -11.1528 -4.5757 -12.0351 -11.3996 -4.4765 -12.6585 -11.4059 -4.4162 -13.7547 -11.4304 -4.1756 -14.6064 -10.1352 -4.3637 -16.5974 -8.6171 -2.9881 -16.3120 -4.9811 0.8818 -16.8553 -2.2190 2.4587 -15.7416 -1.2005 4.9483 -13.8543 -2.2669 5.2052 -12.4460 -2.3691 5.9513 -11.6095 -2.1277 6.1529 -11.0401 -2.0251 6.1844 -10.4938 -2.1376 6.1499 -9.6474 -2.3668 5.9339 -8.2724 -2.2672 5.2054 -6.3836 -1.2012 4.9488 -5.2690 -2.2199 2.4592 -5.8115 -4.9814 0.8822 -5.5094 -8.6153 -2.9883 -7.5100 -10.1324 -4.3647 -8.3669 -11.4279 -4.1766 -10.0146 -11.3928 -4.5369 -11.4118 -11.3933 -4.5367 -12.0351 -11.3996 -4.4765 -12.1051 -11.5751 -4.4670 -12.7427 -11.5859 -4.4168 -13.6718 -11.6281 -4.2160 -14.7164 -10.6749 -4.1591 -16.3313 -9.2758 -3.4638 -16.3977 -5.9130 0.6407 -16.3480 -5.0769 1.0773 -15.8217 -2.5700 4.1197 -13.4344 -5.2508 4.3582 -12.2289 -5.2278 4.6354 -11.5226 -5.2287 4.6242 -11.0444 -5.2305 4.6017 -10.5856 -5.2285 4.6264 -9.8703 -5.2284 4.6289 -8.6924 -5.2509 4.3582 -6.3031 -2.5706 4.1201 -5.7752 -5.0773 1.0777 -5.7242 -5.9132 0.6410 -5.7744 -9.2729 -3.4644 -7.3996 -10.6714 -4.1604 -8.4499 -11.6255 -4.2171 -9.8467 -11.5638 -4.5175 -11.4676 -11.5644 -4.5173 -12.1051 -11.5751 -4.4670 -12.1066 -11.8205 -4.4340 -12.7431 -11.8201 -4.3941 -13.6580 -11.8182 -4.2345 -14.7716 -11.1754 -4.1132 -16.1658 -10.0111 -3.3628 -16.4367 -6.3544 0.0620 -16.3342 -7.1869 0.7602 -15.8248 -3.6435 3.4027 -13.4324 -6.4688 3.4082 -12.2361 -6.2574 3.5520 -11.5271 -6.5955 3.5462 -11.0449 -6.7436 3.5346 -10.5824 -6.5812 3.5474 -9.8647 -6.2624 3.5487 -8.6957 -6.4687 3.4083 -6.2998 -3.6440 3.4031 -5.7860 -7.1866 0.7603 -5.6841 -6.3545 0.0623 -5.9401 -10.0069 -3.3640 -7.3436 -11.1711 -4.1149 -8.4637 -11.8155 -4.2357 -9.8393 -11.8201 -4.4743 -11.4702 -11.8208 -4.4740 -12.1066 -11.8205 -4.4340 -12.1144 -12.0745 -4.4602 -12.7513 -12.0932 -4.4102 -13.6375 -12.1671 -4.2107 -14.8761 -11.5438 -4.2174 -16.0284 -10.7719 -2.7507 -16.2833 -8.3526 -0.8624 -16.3741 -8.1695 0.5461 -15.8057 -7.0390 1.9889 -13.4586 -8.2137 3.5256 -12.1629 -8.3527 3.2670 -11.4847 -8.3469 3.2773 -11.0468 -8.3356 3.2982 -10.6269 -8.3480 3.2752 -9.9358 -8.3493 3.2730 -8.6689 -8.2134 3.5255 -6.3172 -7.0387 1.9889 -5.7440 -8.1684 0.5460 -5.8340 -8.3513 -0.8626 -6.0797 -10.7663 -2.7527 -7.2369 -11.5384 -4.2196 -8.4841 -12.1640 -4.2120 -9.8166 -12.0551 -4.5105 -11.4776 -12.0559 -4.5101 -12.1144 -12.0745 -4.4602 -12.1032 -12.3162 -4.4667 -12.7359 -12.3394 -4.4177 -13.6349 -12.4314 -4.2221 -14.8416 -11.9554 -4.2901 -16.0250 -11.5554 -2.5280 -16.2599 -10.0355 -0.5854 -16.3748 -10.4023 0.7665 -15.7993 -9.1232 2.5708 -13.4665 -10.3377 4.0146 -12.1382 -10.5782 3.8834 -11.4704 -10.5682 3.8885 -11.0472 -10.5486 3.8990 -10.6414 -10.5700 3.8874 -9.9594 -10.5722 3.8863 -8.6606 -10.3365 4.0141 -6.3209 -9.1214 2.5702 -5.7384 -10.3979 0.7648 -5.8542 -10.0319 -0.5866 -6.0808 -11.5474 -2.5312 -7.2706 -11.9491 -4.2927 -8.4875 -12.4283 -4.2235 -9.8382 -12.2923 -4.5160 -11.4704 -12.2931 -4.5157 -12.1032 -12.3162 -4.4667 -12.1093 -12.7048 -4.6697 -12.7327 -12.7124 -4.6365 -13.5318 -12.7420 -4.5042 -15.2397 -12.5001 -4.1466 -16.2359 -12.5979 -2.0875 -16.7586 -12.4391 -0.2510 -16.2385 -12.7907 1.6013 -15.8320 -12.1995 2.7774 -13.4566 -12.3041 5.0461 -12.1390 -12.7705 4.8987 -11.4716 -12.7511 4.9043 -11.0473 -12.7128 4.9160 -10.6403 -12.7543 4.9029 -9.9590 -12.7583 4.9016 -8.6705 -12.3009 5.0445 -6.2850 -12.1901 2.7732 -5.8756 -12.7795 1.5963 -5.3444 -12.4277 -0.2556 -5.8681 -12.5863 -2.0923 -6.8699 -12.4918 -4.1501 -8.5898 -12.7385 -4.5057 -9.7913 -12.6962 -4.7033 -11.4859 -12.6971 -4.7029 -12.1093 -12.7048 -4.6697'/> |
| 39 |
<!-- ROUTE information for TS node:
[from fraction_changed to CI.set_fraction
]
-->
<TimeSensor DEF='TS' cycleInterval='6' loop='true'/> |
| 40 | < ROUTE fromNode='TS' fromField='fraction_changed' toNode='CI' toField='set_fraction'/> |
| 41 | < ROUTE fromNode='CI' fromField='value_changed' toNode='NC' toField='set_point'/> |
| 42 | </Scene> |
| 43 | </X3D> |
Event Graph ROUTE Table with 2 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
|
TS
TimeSensor fraction_changed SFFloat |
CI
CoordinateInterpolator set_fraction SFFloat |
then
|
CI
CoordinateInterpolator value_changed MFVec3f |
NC
Coordinate set_point MFVec3f |
<!--
Color legend: X3D terminology
<X3dNode
DEF='idName' field='value'/>
matches XML terminology
<XmlElement
DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement)
(Grey background inside box: inserted documentation)
(Magenta background: X3D Extensibility)
-->
<!--
For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints.
-->
